90* Mjic X Mbspt Elbow

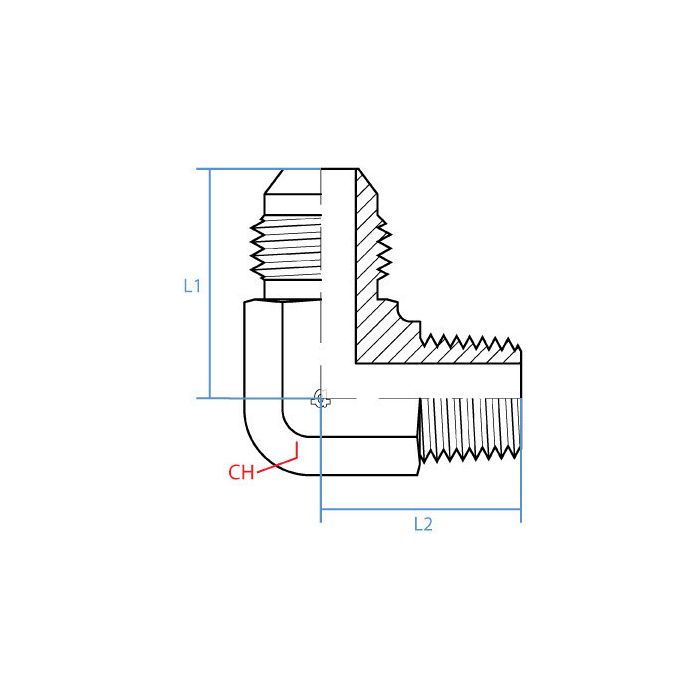

CH Width 19mm	L1 Length 31.3mm	L2 Length 31mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9063-08-06	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap a hose end over, is this elbow the one that goes from 1/2 JIC male to 3/8 BSPT male?

Question by: Rod C on Jun 8, 2025, 10:50 AM

It is a 90 degree steel elbow with a 1/2 inch JIC male on one side and a 3/8 inch BSPT male on the other. The thread callouts are 3/4 - 16 UNF on the JIC end and R 3/8 - 19 on the BSPT end.

Answer by: Customer Support on Jun 10, 2025, 6:37 AM
