90* Mjic X Mbspt Elbow 9063-06-08

Specifications

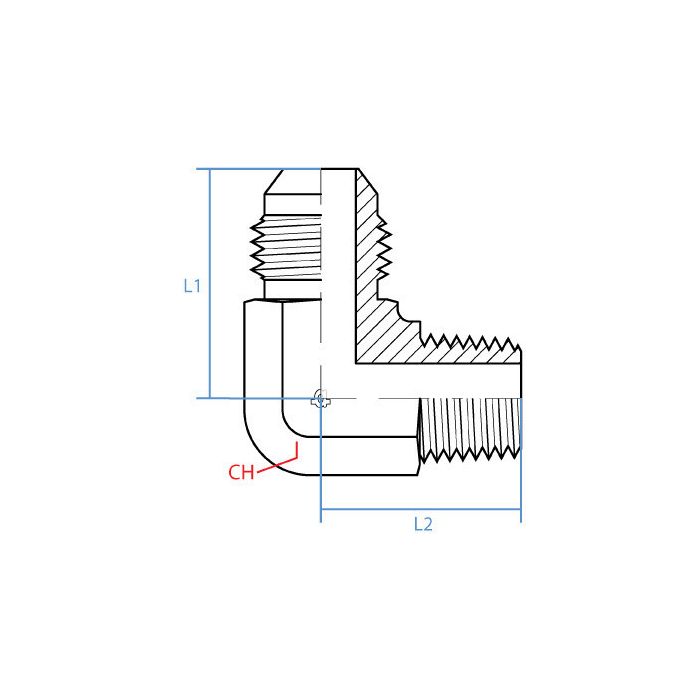

CH Width 22mm	L1 Length 33.3mm	L2 Length 33.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9063-06-08	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a 3/8 JIC hose up to a 1/2 BSPT port, is this the right elbow for that?

Question by: Dwight B on Mar 10, 2026, 5:04 PM

For that kind of mix-and-match connection, this elbow is set up with a male JIC 9/16-18 UNF on one side (3/8 JIC size) and a male BSPT R 1/2-14 on the other side (1/2 BSPT size), with a 90 degree bend between them.

Answer by: Customer Support on Mar 11, 2026, 5:38 PM

Got a piece of equipment running BSPT ports and the hydraulic line coming off it has a JIC end on it, does this fitting bridge that gap, or am I lookin at the wrong part?

Question by: Jean W on Jun 13, 2025, 6:42 AM

That's exactly the gap this fitting covers. One end is a 9/16-18 UNF male JIC thread, the other is an R 1/2-14 male BSPT taper thread. Both ends are male, so you'd need female JIC and female BSPT ports on whatever you're connecting to. If your equipment has those, you're looking at the right part.

Answer by: Customer Support on Jun 15, 2025, 6:49 AM

Will this elbow hold up if its gonna be used outdoors where it gets rained on?

Question by: Joyce K on Apr 21, 2025, 11:08 AM

The steel construction of this elbow is designed to offer good durability in demanding conditions, so it should be suitable for outdoor use where it might get wet.

Answer by: Customer Support on Apr 23, 2025, 6:47 AM
