90* Mjic X Mbspt Elbow

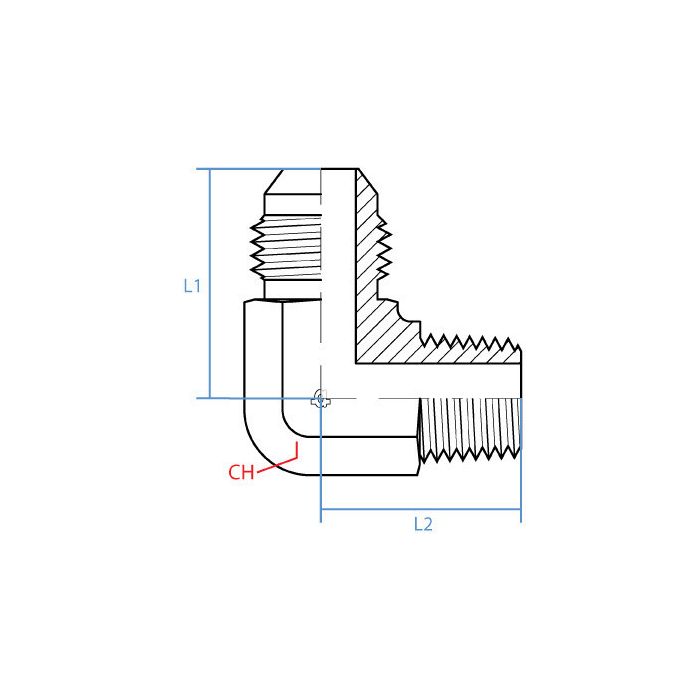

CH Width 19mm	L1 Length 27.3mm	L2 Length 27.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9063-06-06	Product Weight 0.12 lbs

Product Questions & Answers 2

Product Questions & Answers

got a piece of equipment with a BSPT port and the hydraulic line coming off it has a JIC end on it, will this elbow let me tie them together without any adapters in between?

Question by: Ross G on Sep 26, 2025, 11:15 AM

That's exactly what it's built for. One end is a 3/8" Male JIC running a 9/16-18 UNF thread, and the other side is a 3/8" Male BSPT on an R 3/8-19 thread. Both are male, so you're threading directly into female ports on each side. No additional adapters needed to bridge those two standards together.

Answer by: Customer Support on Sep 28, 2025, 6:22 AM

trying to hook a jic hose end to a bspt port, is this the right elbow for that?

Question by: Connie H on Jan 3, 2026, 7:09 AM

For tying the two standards together, it gives you a 3/8 inch Male JIC on one side with 9/16-18 UNF threads and a 3/8 inch Male BSPT on the other side with R 3/8-19 threads, all in a 90 degree elbow.

Answer by: Customer Support on Jan 4, 2026, 9:40 PM
