90* Mjic X Mbspt Elbow 9063-06-04

Specifications

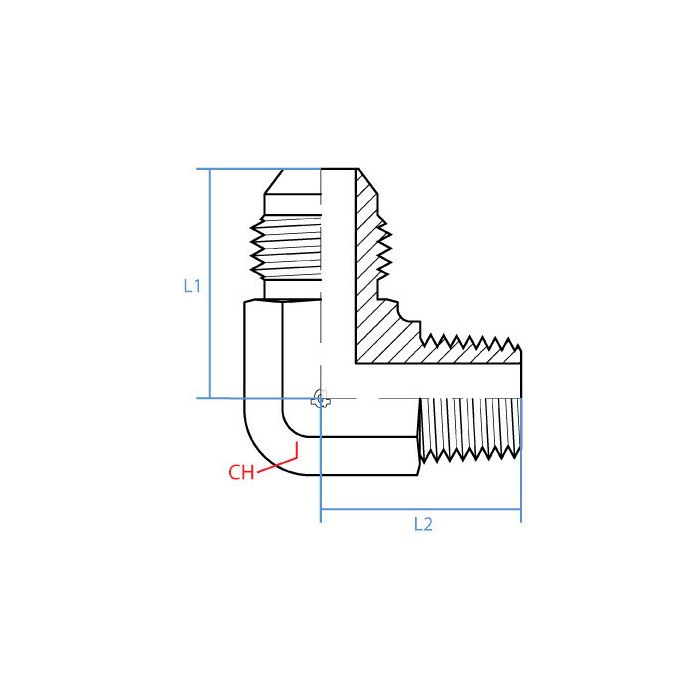

CH Width 14mm	L1 Length 26mm	L2 Length 24.8mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9063-06-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line coming off a British-made pump with a 1/4 BSPT male port, and I need to tie into a 3/8 JIC male fitting on the other end. This elbow gonna work for that, or am I barkin up the wrong tree?

Question by: Connie M on Apr 26, 2025, 9:57 AM

That setup matches exactly what this elbow handles. One end is a 3/8" Male JIC with a 9/16-18 UNF thread, and the other is a 1/4" Male BSPT with an R 1/4-19 thread. Both sides are male, so you'd need female counterparts on each end of your line. If your pump port and hose fitting are female on both sides, this elbow drops right in between them.

Answer by: Customer Support on Apr 27, 2025, 8:46 PM

Will this elbow fitting work with standard JIC and BSPT connections, or are there any special requirements?

Question by: Glen M on Jun 13, 2025, 5:13 PM

This 90-degree elbow is designed to adapt a 3/8" Male JIC (MJIC) to a 1/4" Male BSPT (MBSPT) connection.

Answer by: Customer Support on Jun 15, 2025, 12:08 PM

trying to swap a fitting out, is this elbow the one that’s 3/8 JIC male on one end and 1/4 BSPT male on the other?

Question by: Dustin C on Apr 28, 2025, 8:51 AM

You’ve got the right style if you need a steel 90 degree elbow with a male 3/8 inch JIC on side 1 (9/16-18 UNF) and a male 1/4 inch BSPT on side 2 (R 1/4-19).

Answer by: Customer Support on Apr 29, 2025, 6:19 PM
