90* Mjic X Mbspt Elbow

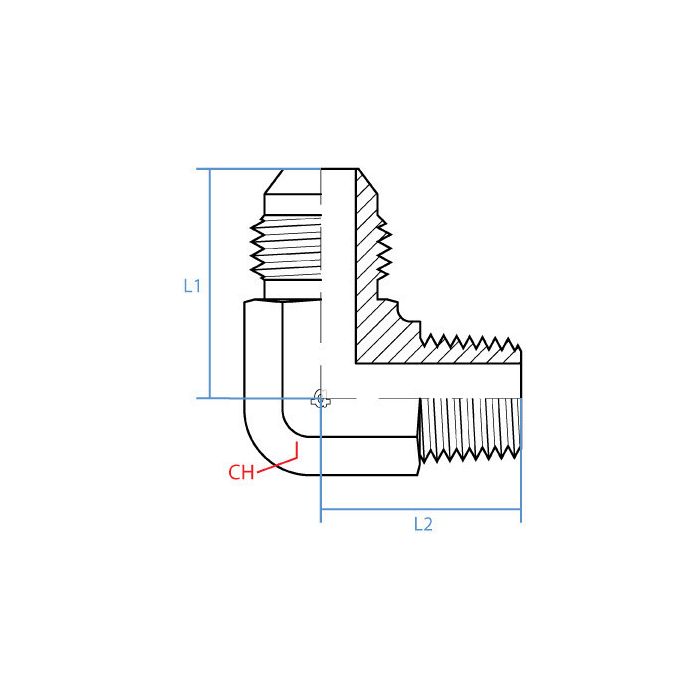

CH Width 16mm	L1 Length 23mm	L2 Length 22mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9063-05-04	Product Weight 0.12 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a hydraulic line coming off a British-made pump with a 1/4 BSPT port and I need to tie it into a JIC fitting at a 90-degree turn. This the right piece for that?

Question by: Cindy J on Apr 11, 2025, 3:50 PM

That's exactly what this fitting handles. One end is a 1/4" BSPT male with an R 1/4-19 thread callout, and the other end is a 5/16" JIC male running 1/2-20 UNF threads. The 90-degree steel body lets you make that directional change right at the connection point, so if your layout needs a hard turn between those two thread types, this adapter does the job without needing additional fittings in between.

Answer by: Customer Support on Apr 13, 2025, 6:23 AM

What size wrench do I need for this elbow fitting?

Question by: Dean M on Apr 2, 2026, 2:58 PM

You'll need a 16mm wrench for the width across the flats on this Adaptall elbow.

Answer by: Customer Support on Apr 4, 2026, 8:34 AM
