90* Mjic X Mbspt Elbow 9063-05-02

Specifications

CH Width 16mm	L1 Length 19mm	L2 Length 23mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9063-05-02	Product Weight 0.09 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tight spot on a hose run, what are the thread sizes on each end of this 90 elbow?

Question by: Phil S on Jan 27, 2026, 2:13 PM

One side is a male JIC in 5/16 inch with a 1/2 - 20 UNF thread, and the other side is a male BSPT in 1/8 inch with an R 1/8 - 28 thread.

Answer by: Customer Support on Jan 29, 2026, 6:57 AM

got a spot on a piece of equipment where the line needs to make a hard turn but there ain't much room to work with, what are the dimensions on this thing?

Question by: Tony K on Jan 27, 2026, 2:51 PM

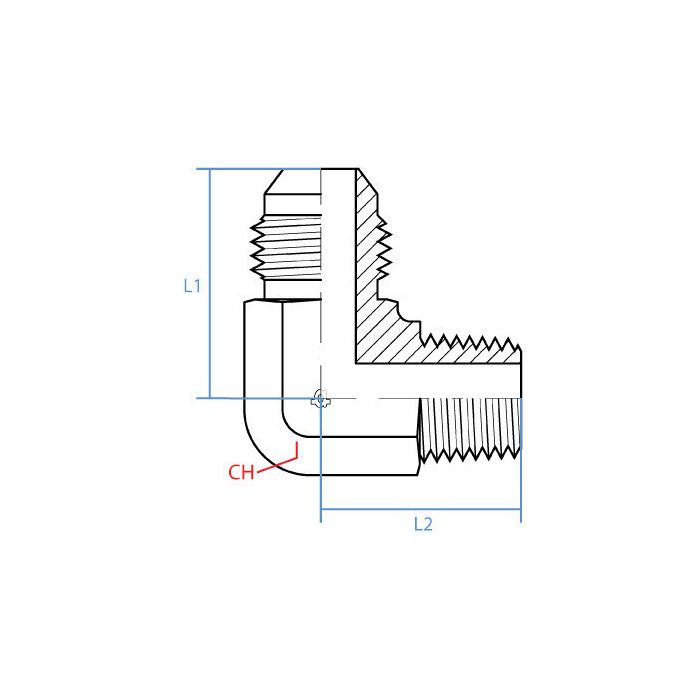

Pretty compact fitting overall. The wrench flat width comes in at 16mm, so it won't hog a lot of space side to side. Length-wise, you're looking at 19mm on one side and 23mm on the other. For tight quarters where a straight adapter just won't cut it, that 90-degree profile tends to be a real practical solution.

Answer by: Customer Support on Jan 28, 2026, 9:38 PM

What's the width of this elbow fitting across the flats? Just need to make sure my wrench will fit.

Question by: Curt T on Mar 5, 2026, 8:05 AM

The Adaptall Ch Width on this elbow is 16mm, so you can plan your wrench size accordingly.

Answer by: Customer Support on Mar 7, 2026, 6:19 AM
