90* Mjic X Mbspt Elbow

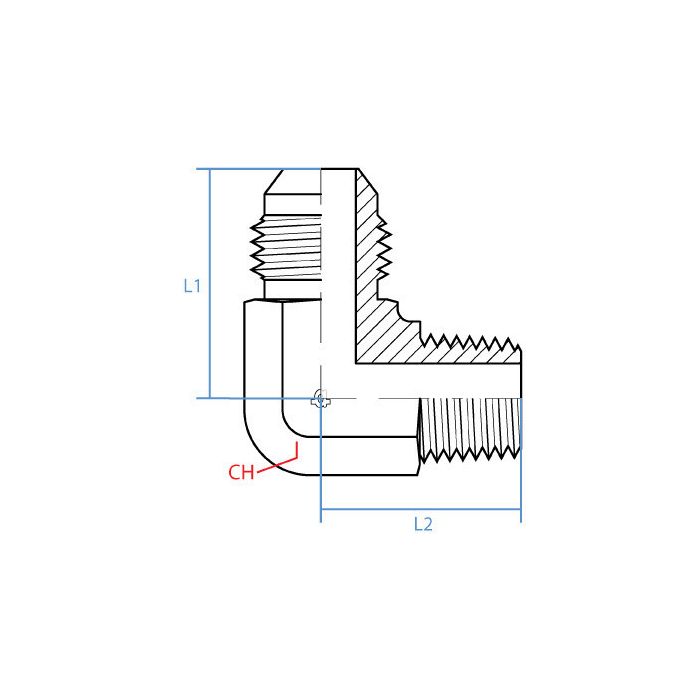

CH Width 14mm	L1 Length 24.3mm	L2 Length 24.9mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9063-04-04	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a line coming off a British-made pump with R 1/4-19 BSPT threads and I need to tie into a JIC fitting on the other end. This elbow gonna work for that?

Question by: Bobby M on Oct 28, 2025, 9:18 AM

That's what this fitting is built for. One end is a 7/16-20 UNF JIC male and the other is an R 1/4-19 BSPT male, both at 1/4" size. So bridging a BSPT port to a JIC connection is a straight shot with this piece. Steel construction keeps it solid under pressure and the threading is machined to hold a leak-resistant seal at both ends.

Answer by: Customer Support on Oct 29, 2025, 1:22 PM

trying to hook a 1/4 JIC line into a 1/4 BSPT port, is this the right elbow for that

Question by: Gene W on Nov 15, 2025, 9:08 PM

For that kind of thread mix, it matches up as a 90 degree steel elbow with a 7/16-20 UNF JIC male on one end and an R 1/4-19 BSPT male on the other, both in 1/4 inch size.

Answer by: Customer Support on Nov 17, 2025, 9:20 AM
