90* Mjic X Mbspt Elbow

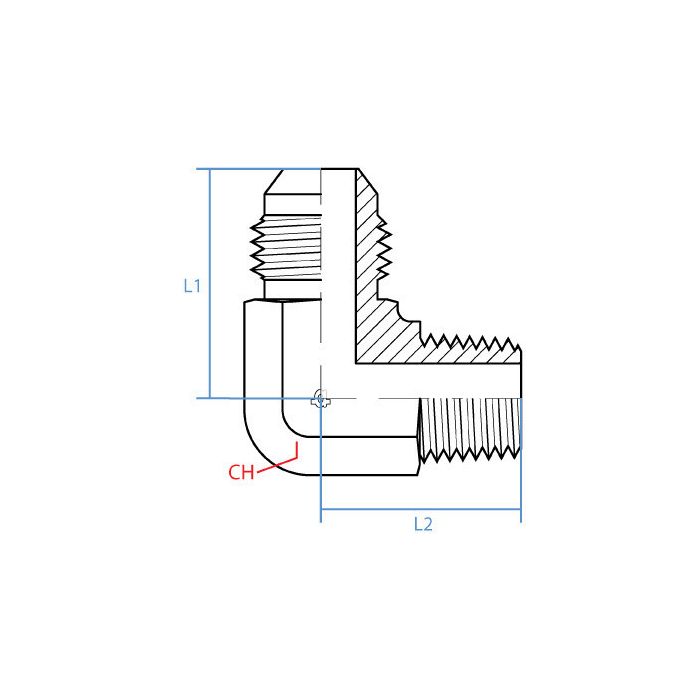

CH Width 12mm	L1 Length 19.8mm	L2 Length 18.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9063-04-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end thats 1/4 jic male, will this elbow thread right onto it?

Question by: Wes R on Dec 2, 2025, 9:44 PM

The JIC side on this elbow is a 1/4 inch male JIC with a 7/16-20 UNF thread callout, so it matches up with a 1/4 JIC female swivel.

Answer by: Customer Support on Dec 4, 2025, 8:48 AM

what's the thread spec on the JIC side of this fitting, the 7/16-20 UNF? just want to make sure it'll mate up right before i order

Question by: Danny T on Aug 9, 2025, 6:52 AM

Correct on both counts. The JIC side runs a 7/16-20 UNF thread, and the connection type is a standard male JIC at 1/4". If your hose end or port is spec'd to that same callout, you're good to go.

Answer by: Customer Support on Aug 11, 2025, 8:11 AM

Will this fitting hold up in a hydraulic system on a farm tractor?

Question by: Merle H on Oct 16, 2025, 6:48 PM

Constructed from steel, this elbow fitting offers good durability for demanding hydraulic applications.

Answer by: Customer Support on Oct 18, 2025, 6:18 AM
