90* Male Bspp X Female Jic

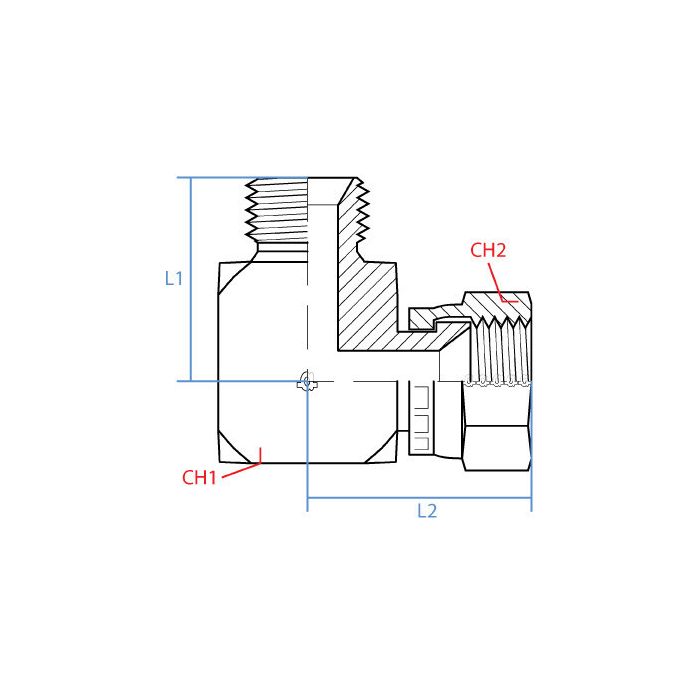

CH1 Width 16mm	CH2 Width 14mm	L1 Length 24mm	L2 Length 23mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9061-04-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running BSPP on one end and JIC on the other, will this fitting bridge that gap without needing extra adapters in between?

Question by: Howard C on Nov 24, 2025, 5:58 PM

Yeah, that's exactly what this one's built for. The male side is G 1/4-19 BSPP and the female side is 7/16-20 UNF JIC, so it connects those two thread standards in a single piece. No stacking adapters, no extra fittings. Both sides are 1/4" nominal size, and the 90-degree elbow angle means you can redirect the line right at the connection point if your routing calls for it.

Answer by: Customer Support on Nov 26, 2025, 4:57 PM
