90* Male Bspp X Female Bspp

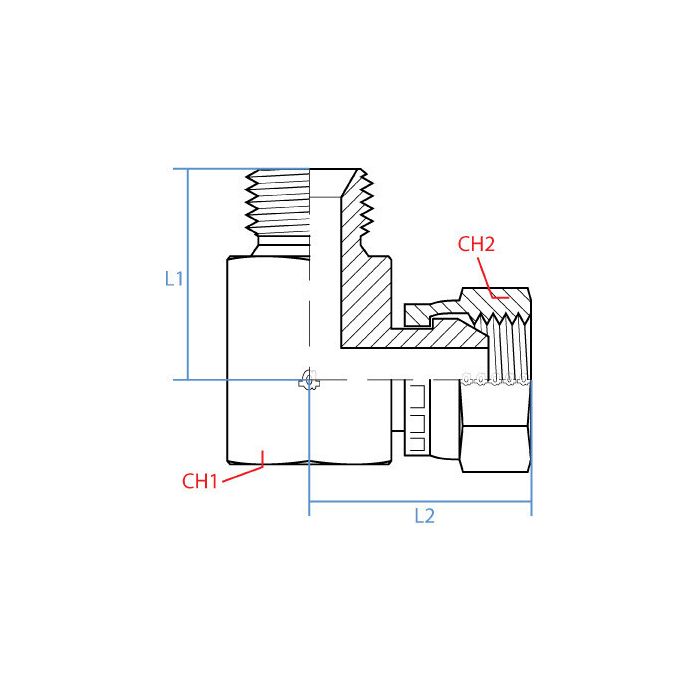

CH1 Width 50mm	CH2 Width 50mm	L1 Length 50mm	L2 Length 55mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9060-20-20	Product Weight 2.15 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot on a hydraulic line, will this elbow keep me at 1-1/4 BSPP on both ends?

Question by: Ralph P on Aug 23, 2025, 3:25 PM

Built for that exact setup, it is a 90 degree elbow with a G 1-1/4 - 11 male BSPP on one side and a G 1-1/4 - 11 female BSPP on the other, so you can turn the line without changing thread type or size.

Answer by: Customer Support on Aug 25, 2025, 6:18 AM

got a tight spot in my hydraulic line where I can't run a straight connection, will this fitting let me keep the same thread size on both ends when I make that turn?

Question by: Brett P on May 22, 2025, 4:17 PM

Both ports on this fitting are G 1-1/4 - 11 BSPP, male on one side and female on the other, so you're not changing thread type or size at the elbow. The 90 degree angle handles the directional shift, and you stay on the same thread standard the whole way through. No adapting to a different thread, no size reduction, just a clean right-angle transition with matching connections on both ends.

Answer by: Customer Support on May 23, 2025, 7:27 PM
