90* Male Bspp X Female Bspp

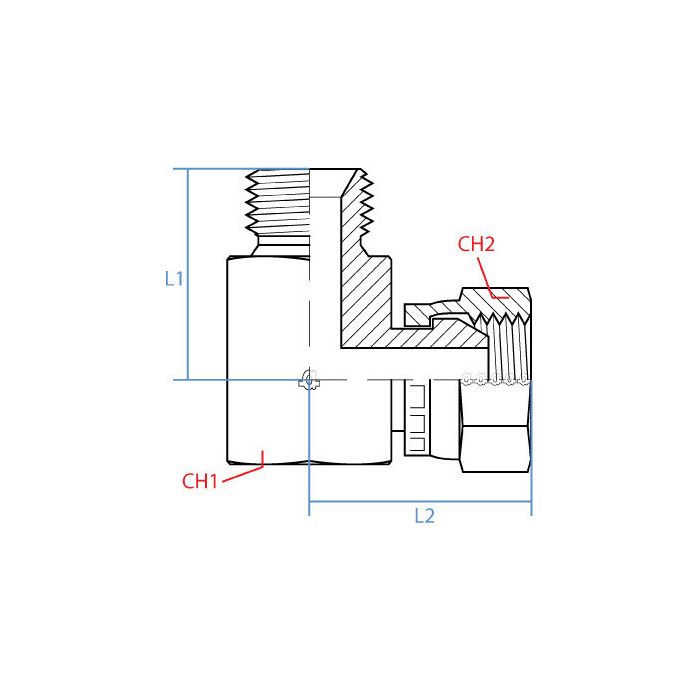

CH1 Width 41mm	CH2 Width 41mm	L1 Length 50mm	L2 Length 45mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1 - 11	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9060-16-16	Product Weight 0.90 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to replace an elbow on a line, is this one 1 inch BSPP on both ends and one side male, other side female?

Question by: Sheila M on May 13, 2025, 9:05 PM

It is a 90 degree elbow with G 1 - 11 BSPP threads on both sides. Side 1 is 1 inch male BSPP, and Side 2 is 1 inch female BSPP.

Answer by: Customer Support on May 15, 2025, 7:54 PM

what's the thread size on both ends of this elbow fitting?

Question by: Jean G on Apr 13, 2025, 8:36 PM

Both ends run 1 inch BSPP, with a G 1 - 11 thread callout on each side. One end is male and the other is female, so you're getting a 90 degree elbow that keeps the same thread standard throughout. The wrench flats on both sides measure 41mm across.

Answer by: Customer Support on Apr 15, 2025, 4:33 PM

Reckon this'll hold up alright outside?

Question by: Wayne Y on Jun 11, 2025, 9:47 AM

Constructed from steel, this fitting should offer good durability in external applications, though specific lifespan will depend on the environment and exposure to corrosives.

Answer by: Customer Support on Jun 12, 2025, 2:55 PM
