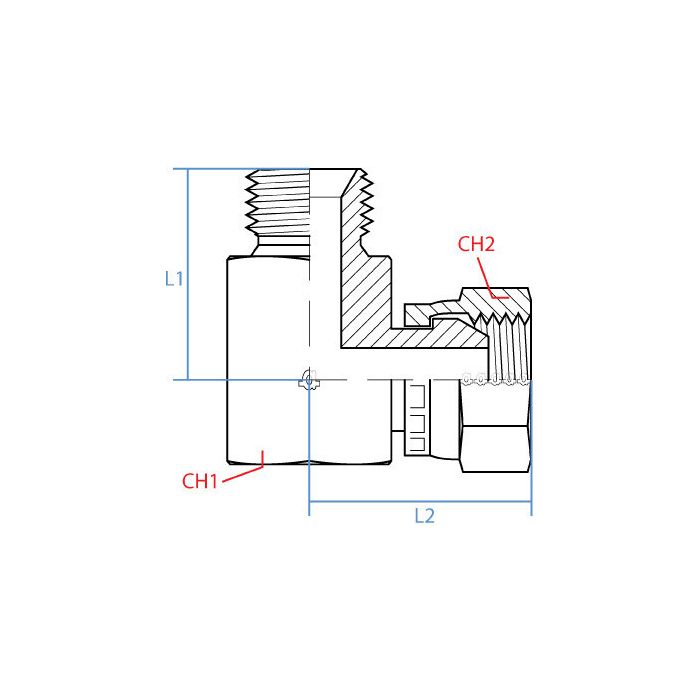

90* Male Bspp X Female Bspp 9060-16-12

Specifications

Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9060-16-12	Product Weight 0.92 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of steel is this elbow made from? Just want to make sure it's tough enough for what I need.

Question by: Pete F on Oct 5, 2025, 11:42 AM

The elbow is made from steel to ensure it holds up in demanding hydraulic applications.

Answer by: Customer Support on Oct 6, 2025, 4:12 PM

trying to hook a 1 inch bspP male into a 3/4 bspP female but need it to turn the corner, is that what this elbow does?

Question by: Cindy B on Nov 17, 2025, 5:09 PM

For a right-angle connection, it bridges a G 1 - 11 male BSPP on one side to a G 3/4 - 14 female BSPP on the other, so you can make a 90 degree turn between those two BSPP sizes.

Answer by: Customer Support on Nov 19, 2025, 12:05 PM

Got a 1" male BSPP port on a hydraulic block and need to drop down to a 3/4" female BSPP connection at a 90 degree angle, this the right fitting for that?

Question by: Scott Y on Feb 11, 2026, 3:43 PM

That's what this fitting handles. Side 1 is a 1" male BSPP (G 1 - 11) and Side 2 is a 3/4" female BSPP (G 3/4 - 14), all built into a 90 degree elbow configuration. So you're threading the male end into your 1" port and then accepting a 3/4" male BSPP on the other side. Steel construction throughout, so it holds up fine in working hydraulic environments.

Answer by: Customer Support on Feb 13, 2026, 6:53 AM
