90* Male Bspp X Female Bspp

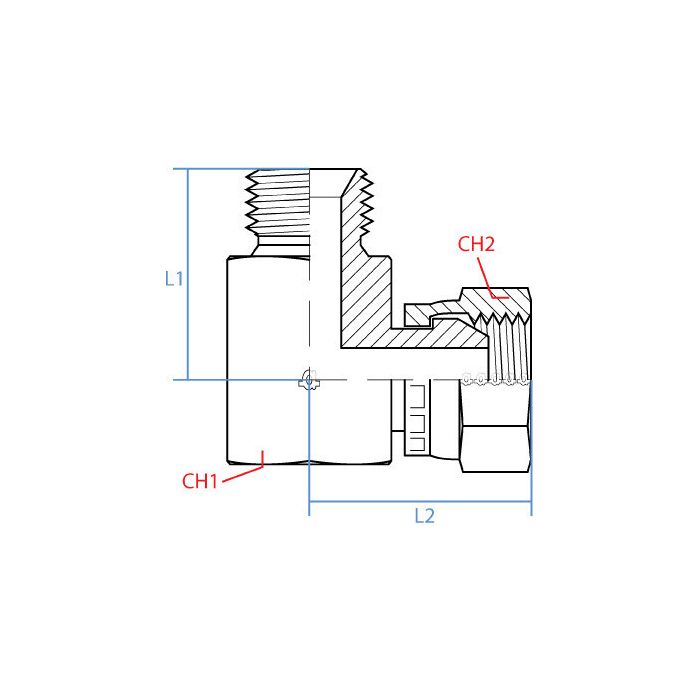

CH1 Width 27mm	CH2 Width 32mm	L1 Length 43mm	L2 Length 45mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number 3436-12-12, Alternate Part Number MI-02205827, Alternate Part Number MINO-03671X84775	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9060-12-12	Product Weight 0.60 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running at a 90 and need to stay BSPP throughout, this adapter keep the same thread type on both ends?

Question by: Hugh H on Jun 27, 2025, 11:04 AM

Both ends are G 3/4-14 BSPP, one male and one female, so yeah, you stay fully in the BSPP standard from one side to the other. The 90-degree elbow lets you make that direction change without swapping thread types or adding extra fittings. Steel construction on this one, so it holds up well in working conditions. Supplier part number is 9060-12-12 if you need to cross-reference it.

Answer by: Customer Support on Jun 29, 2025, 6:19 AM
