90* Male Bspp X Female Bspp

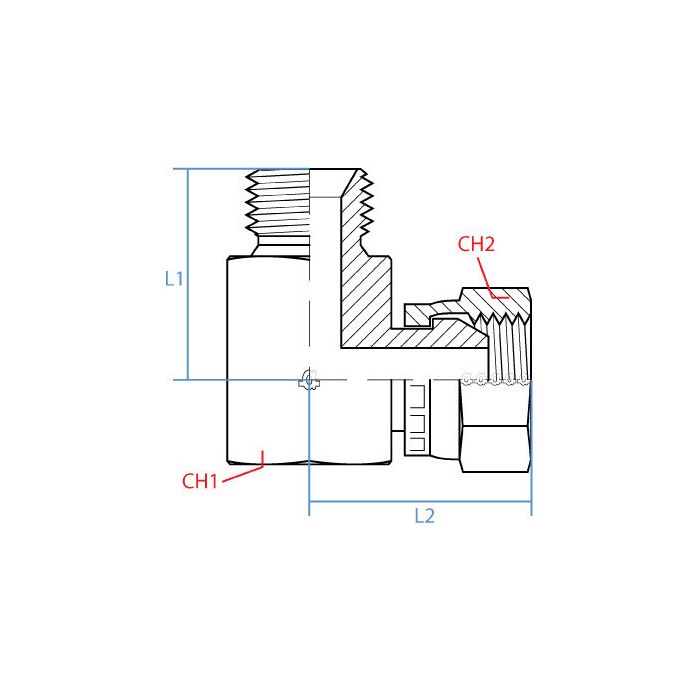

CH1 Width 27mm	CH2 Width 30mm	L1 Length 30mm	L2 Length 34mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 5/8 - 14	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Bspp	Side 2 Callout G 5/8 - 14	Side 2 Gender F	Side 2 Size 5/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9060-10-10	Product Weight 0.42 lbs

Product Questions & Answers 2

Product Questions & Answers

both sides are the same size on this thing, right? 5/8 BSPP male going into a 5/8 BSPP female?

Question by: Rex J on Jun 9, 2025, 9:04 AM

Correct on both counts. The male side is G 5/8-14 and the female side is also G 5/8-14, so you're working with a same-size configuration all the way through. The elbow just changes the direction of flow at 90 degrees without stepping up or down in thread size.

Answer by: Customer Support on Jun 10, 2025, 11:20 AM

trying to clean up a tight hose run, is this a 90-degree elbow with 5/8 BSPP on both ends?

Question by: Clint W on Mar 2, 2026, 8:37 AM

For a right-angle turn, it gives you a 90° elbow with a male G 5/8 - 14 (5/8 inch BSPP) on one side and a female G 5/8 - 14 (5/8 inch BSPP) on the other.

Answer by: Customer Support on Mar 4, 2026, 6:43 AM
