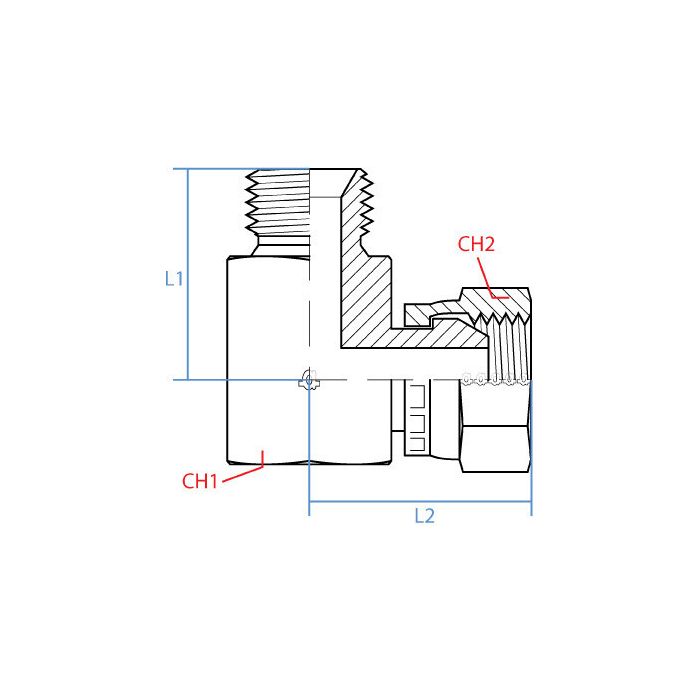

90* Male Bspp X Female Bspp 9060-06-08

Specifications

CH1 Width 25mm	CH2 Width 25.5mm	L1 Length 30mm	L2 Length 38mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9060-06-08	Product Weight 0.35 lbs

Product Questions & Answers 3

Product Questions & Answers

fitting's got a 3/8 male end and I need to connect it to a 1/2 inch female BSPP port, is that what this thing does?

Question by: Earl K on Dec 11, 2025, 7:26 PM

That's what it handles. One end is a 3/8 inch male BSPP thread (G 3/8-19) and the other is a 1/2 inch female BSPP (G 1/2-14), so you're getting both a size transition and a direction change in one piece. Saves you from stacking an extra adapter in the line.

Answer by: Customer Support on Dec 13, 2025, 5:44 PM

trying to swap a fitting on a tight hose run, what threads and sizes are on each end of this 90 elbow?

Question by: Joyce R on Apr 28, 2025, 7:06 PM

On the male end you get a 3/8 inch BSPP thread, called out as G 3/8-19. The female end is 1/2 inch BSPP, called out as G 1/2-14, and the body is a 90 degree elbow.

Answer by: Customer Support on Apr 30, 2025, 10:35 AM

Reckon this'll hold up okay in a hydraulic setup on a farm tractor? Just need somethin' to change the direction of the line a bit.

Question by: Shawn G on May 7, 2025, 1:59 PM

This fitting is manufactured from steel, providing good durability for hydraulic circuit assemblies, so it should be suitable for farm tractor applications where a direction change is needed.

Answer by: Customer Support on May 9, 2025, 6:03 AM
