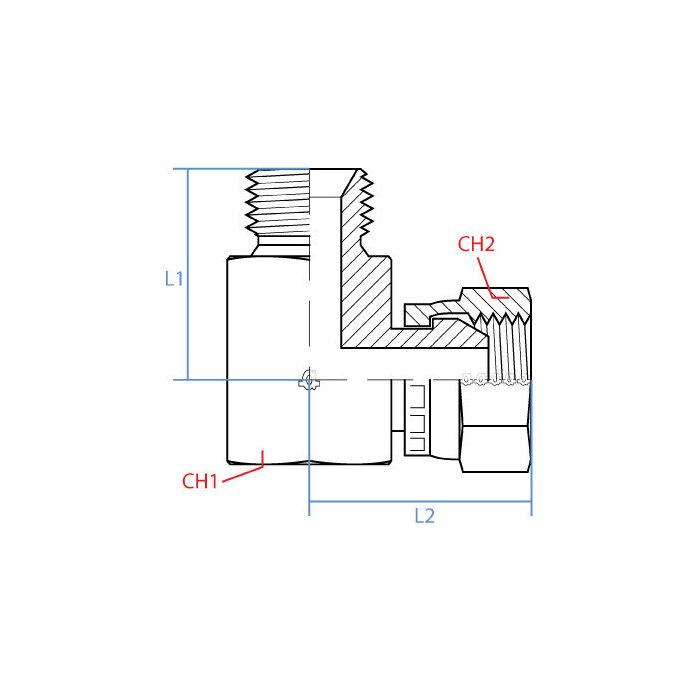

90* Male Bspp X Female Bspp

CH1 Width 14mm	CH2 Width 19mm	L1 Length 28mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-02558117, Alternate Part Number MINO-03671X50006	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9060-04-04	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

both ends are the same G 1/4-19 thread, right? just trying to make sure i ain't gotta deal with an adapter on top of an adapter

Question by: Kurt E on Oct 26, 2025, 1:13 PM

Correct on both counts. The male and female ports are both G 1/4-19 BSPP, same size and thread type all the way through. You get a straight 90-degree turn without any thread conversion happening. If your line is already running 1/4" BSPP, this fitting keeps everything consistent and just redirects the flow path.

Answer by: Customer Support on Oct 28, 2025, 7:18 AM
