90*Mjic X Male Bspp Adj Elbow

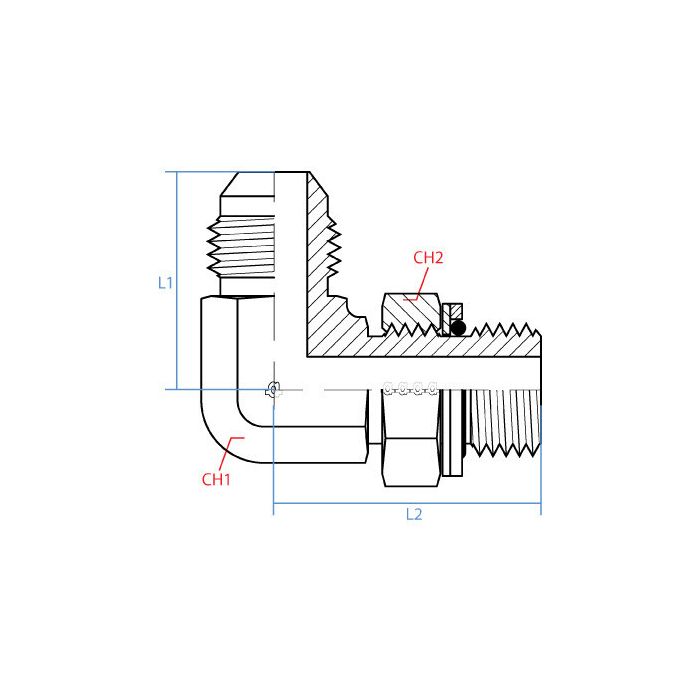

CH1 Width 48mm	CH2 Width 60mm	L1 Length 61.2mm	L2 Length 58.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout G 1-1/2 - 11	Side 2 Gender M	Side 2 Size 1-1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-24-24	Product Weight 2.05 lbs

Product Questions & Answers 1

Product Questions & Answers

Trying to replace an elbow on a 1-1/2 line. What thread ends are on this one?

Question by: Lynn F on Jun 2, 2025, 10:50 AM

It has a 1-1/2 inch JIC male on one side with 1-7/8 - 12 UN threads, and a 1-1/2 inch BSPP male adjustable on the other side with G 1-1/2 - 11 threads.

Answer by: Customer Support on Jun 4, 2025, 7:03 AM
