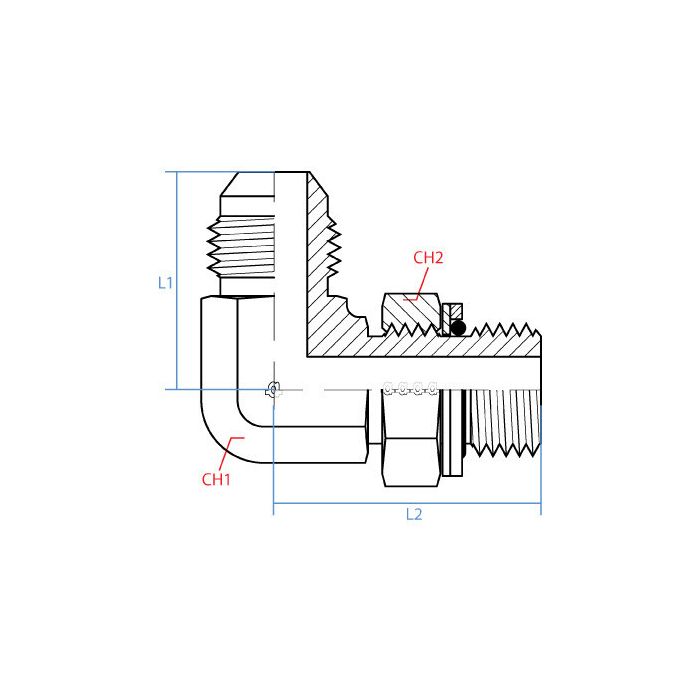

90*Mjic X Male Bspp Adj Elbow

CH1 Width 41mm	CH2 Width 50mm	L1 Length 52mm	L2 Length 56mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-20-20	Product Weight 1.55 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running BSPP on one end and JIC on the other, will this fitting bridge that gap without needing an adapter in between?

Question by: Dustin S on Jun 9, 2025, 2:50 PM

That's exactly what it's built for. One side is a male JIC with a 1-5/8 - 12 UN thread, and the other is a male BSPP with a G 1-1/4 - 11 thread. Both sides are 1-1/4" size, so you're getting a direct connection between those two thread types in a single 90-degree elbow with no extra hardware needed.

Answer by: Customer Support on Jun 11, 2025, 6:59 AM
