90*Mjic X Male Bspp Adj Elbow

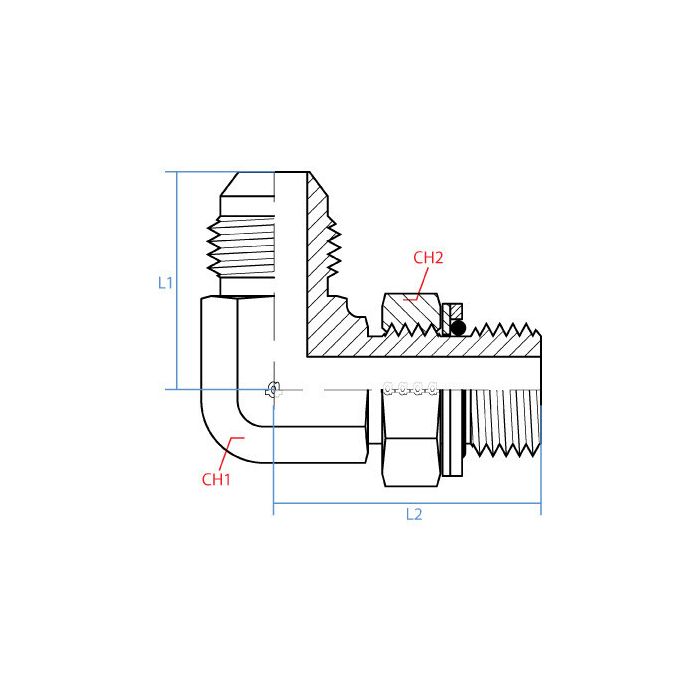

CH1 Width 40mm	CH2 Width 41mm	L1 Length 52mm	L2 Length 57mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number #20MJIC 90 X #16MBSPP ADJ9059-2016, Alternate Part Number HYD KOOL-7, Alternate Part Number MI-05249628, Alternate Part Number MINO-03671X00117	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-20-16	Product Weight 1.45 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running 1-1/4" JIC on one end and need to tie into a 1" BSPP port at a 90 degree angle. This the right fitting for that?

Question by: Peggy R on Jul 28, 2025, 5:23 PM

That setup matches exactly what this elbow is built for. Side one is a 1-5/8-12 UN male JIC connection, which corresponds to a 1-1/4" JIC line. Side two is a G 1-11 male BSPP, which fits a 1" BSPP port. The 90 degree angle is fixed into the design, so you get that directional change right at the fitting without needing extra adapters in between.

Answer by: Customer Support on Jul 30, 2025, 9:42 AM
