90*Mjic X Male Bspp Adj Elbow

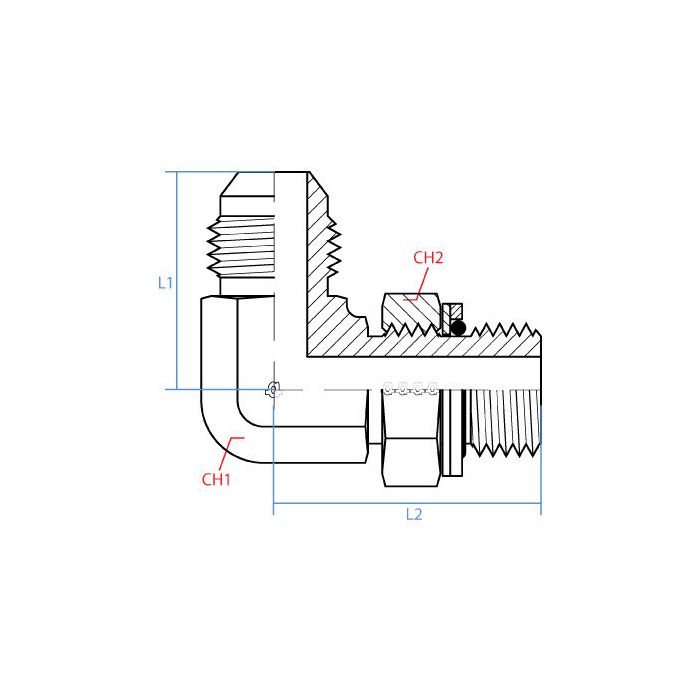

CH1 Width 40mm	CH2 Width 50mm	L1 Length 51mm	L2 Length 57mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-16-20	Product Weight 1.55 lbs

Product Questions & Answers 2

Product Questions & Answers

what's the thread spec on the JIC side of this fitting? need to make sure it mates up with my existing line before I order

Question by: Lynn L on Feb 19, 2026, 2:27 PM

The JIC end runs 1-5/16 - 12 UN, which is a 1" male JIC connection. That's a pretty standard size in hydraulic hydraulic connections, so if your existing line is spec'd for 1" JIC female, you're good to go.

Answer by: Customer Support on Feb 21, 2026, 6:22 AM

got a hose end that’s 1 inch male JIC, will this elbow match up to it?

Question by: Freddie B on Jul 13, 2025, 4:06 PM

Match the threads and it will. Side 1 on this elbow is a 1 inch male JIC with a 1-5/16 - 12 UN thread, so it is meant to mate with a corresponding JIC female in that size.

Answer by: Customer Support on Jul 15, 2025, 6:24 AM
