90*Mjic X Male Bspp Adj Elbow 9059-16-12

Specifications

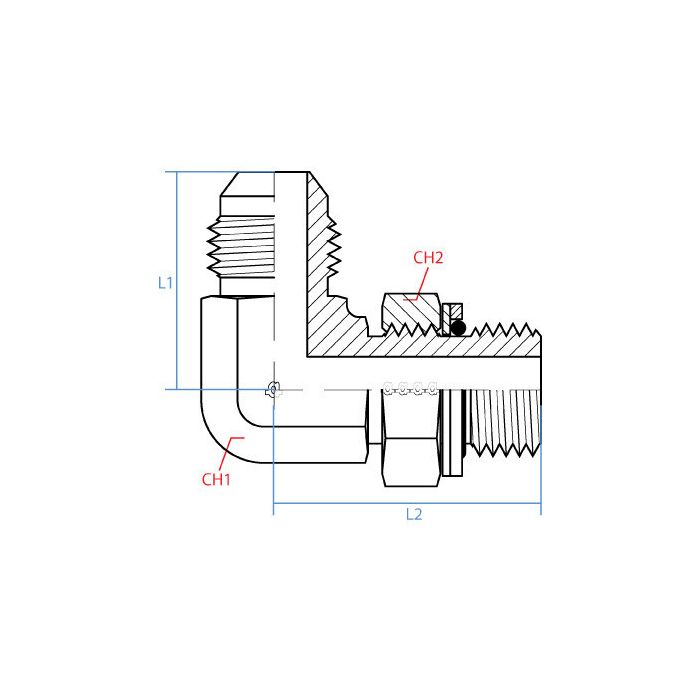

CH1 Width 33mm	CH2 Width 36mm	L1 Length 45mm	L2 Length 51mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-16-12	Product Weight 0.85 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a 1 inch jic hose end to a 3/4 bspp port, is this the right elbow for that?

Question by: Sherry C on Dec 4, 2025, 7:28 PM

For that kind of thread change, it matches up as a 90 degree steel adapter with a 1 inch JIC male on one side and a 3/4 inch BSPP male adjustable on the other. Side 1 thread is 1-5/16 - 12 UN, and side 2 thread is G 3/4 - 14.

Answer by: Customer Support on Dec 6, 2025, 5:59 PM

Got a piece of equipment with a 3/4 BSPP port and I need to swing the line off at a right angle over to a 1" JIC fitting. This the right adapter for that?

Question by: Billy W on Apr 28, 2025, 9:05 AM

That's what this one's built for. One end is a 1-inch JIC male (threaded 1-5/16-12 UN) and the other is a 3/4-inch BSPP male adjustable. The 90-degree elbow shape lets you change direction right at the port, which cleans up routing a good bit. The adjustable side means you can clock the elbow to whatever angle works before you lock it down, so the hose or line runs where you need it without fighting the geometry.

Answer by: Customer Support on Apr 29, 2025, 2:05 PM

Reckon this elbow fitting would work to hook up a pressure gauge on my tractor? It's got them funny metric threads.

Question by: Stan R on Oct 4, 2025, 9:20 AM

Designed for directional changes and adapting between thread types, this elbow will likely work. Just be sure the 3/4" BSPP side matches your pressure gauge and the 1" JIC side fits your tractor's hydraulic system.

Answer by: Customer Support on Oct 6, 2025, 6:52 AM
