90*Mjic X Male Bspp Adj Elbow

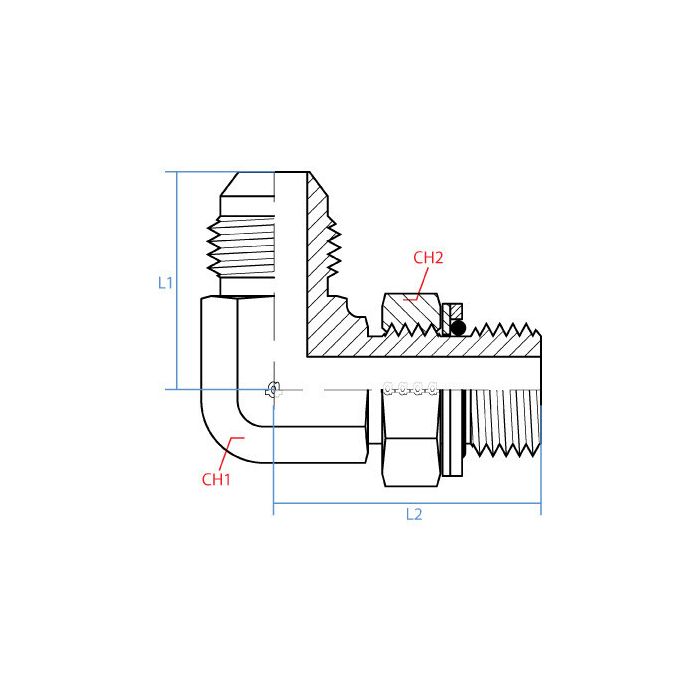

CH1 Width 26mm	CH2 Width 36mm	L1 Length 41mm	L2 Length 49mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-02116269, Alternate Part Number MINO-03671J02611	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-12-12	Product Weight 0.65 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the width of each side on this elbow fitting? Gotta make sure it'll fit in the space I've got.

Question by: Randy C on Sep 2, 2025, 10:19 AM

The side with the JIC connection is 26mm wide, and the BSPP side measures 36mm.

Answer by: Customer Support on Sep 4, 2025, 6:19 AM

Got a machine running G 3/4 BSPP ports and need to tie into a JIC line, this fitting handle that kind of crossover?

Question by: Carl M on Mar 4, 2026, 6:17 AM

That's what this elbow is built for. One end is male JIC at 1-1/16-12 UN and the other is male BSPP at G 3/4-14, so it bridges those two thread standards in a single 90-degree fitting. Both sides are 3/4 inch nominal, and the steel construction holds up well in demanding industrial setups. Just make sure your mating ports are female on both ends since both sides of this fitting are male.

Answer by: Customer Support on Mar 5, 2026, 5:45 PM
