90*Mjic X Male Bspp Adj Elbow

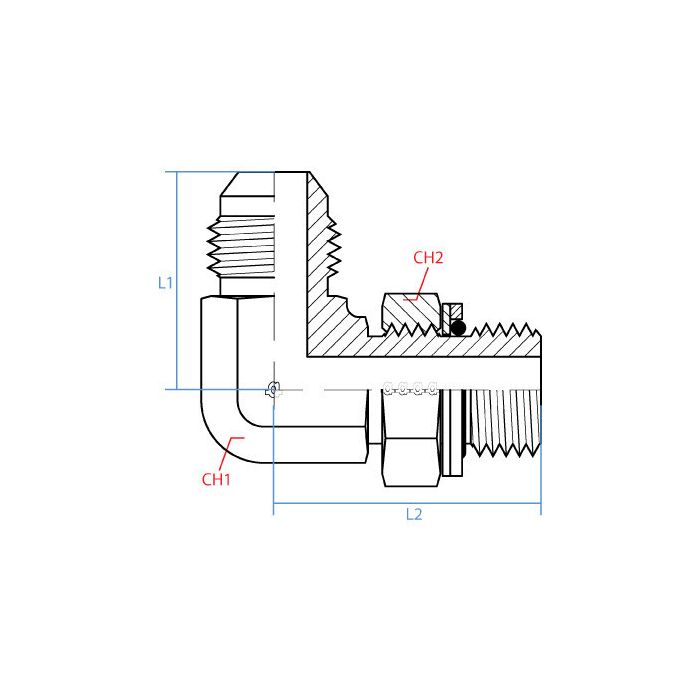

CH1 Width 26mm	CH2 Width 36mm	L1 Length 40mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-10-12	Product Weight 0.65 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap an elbow out, what are the actual thread callouts on each end of this one?

Question by: Gary B on Feb 10, 2026, 9:26 PM

On the JIC side it is a 7/8 - 14 UNF male in the 5/8 inch size. The other end is a BSPP male adjustable with a G 3/4 - 14 thread callout in the 3/4 inch size.

Answer by: Customer Support on Feb 12, 2026, 4:42 PM
