90*Mjic X Male Bspp Adj Elbow 9059-10-08

Specifications

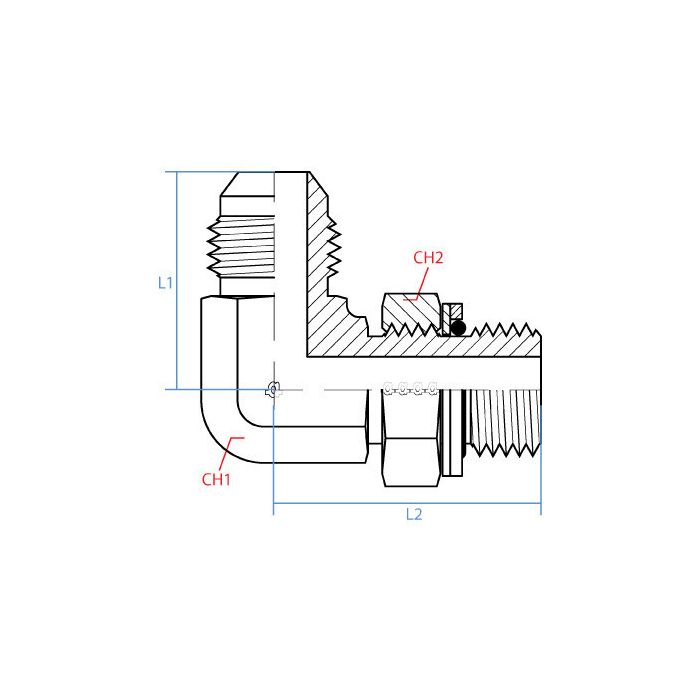

CH1 Width 22mm	CH2 Width 26mm	L1 Length 38mm	L2 Length 43mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-05616291, Alternate Part Number MINO-03671J06519	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-10-08	Product Weight 0.40 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap an elbow on a line, is this one JIC male 5/8 on one side and BSPP male 1/2 on the other?

Question by: Rex G on Apr 15, 2025, 9:49 PM

On the JIC side you get a male 7/8-14 UNF callout, listed as size 5/8 inch. The other end is a BSPP male with a G 1/2-14 callout, listed as size 1/2 inch.

Answer by: Customer Support on Apr 17, 2025, 6:36 PM

Got a machine running British-threaded fittings on one end and JIC on the other, does this elbow cross that gap, or am I still gonna need an adapter in between?

Question by: Sherry S on Dec 21, 2025, 10:36 AM

That's exactly what this fitting handles. One side is a 7/8-14 UNF JIC male thread, which is your standard 37-degree flare connection, and the other side is a G 1/2-14 BSPP male thread, which is the parallel British standard port thread. So yeah, it bridges those two thread standards directly in one piece, no additional adapter needed between them.

Answer by: Customer Support on Dec 23, 2025, 6:02 AM

What kind of steel is this elbow made from? Gotta make sure it'll hold up to what I'm doin'.

Question by: Gene P on Jun 11, 2025, 12:43 PM

This elbow is crafted from steel to provide reliable performance in industrial applications. It's designed for durability and long-lasting use.

Answer by: Customer Support on Jun 13, 2025, 7:24 AM
