90*Mjic X Male Bspp Adj Elbow 9059-08-12

Specifications

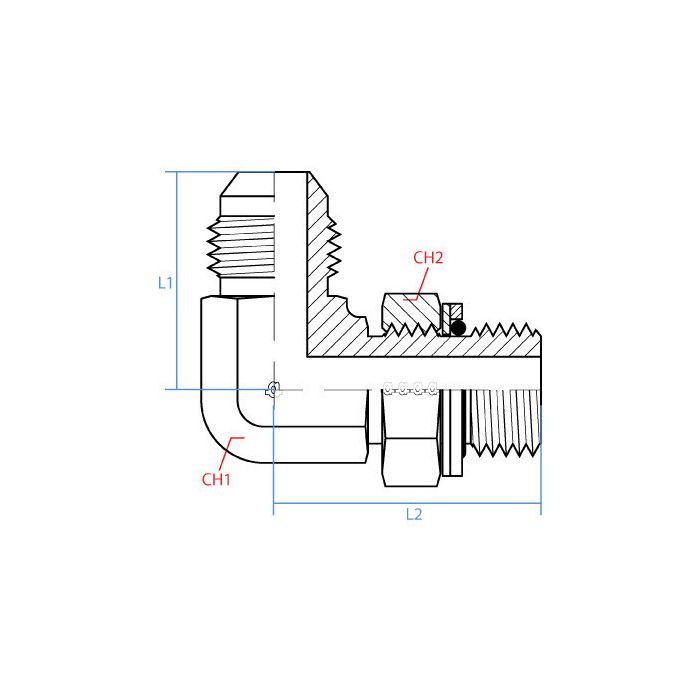

CH1 Width 26mm	CH2 Width 36mm	L1 Length 37mm	L2 Length 49.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-08-12	Product Weight 0.55 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a machine that runs JIC on one side and BSPP on the other, does this fitting actually bridge both thread standards in one piece?

Question by: Hank B on Dec 3, 2025, 7:10 AM

Yeah, that's exactly what it does. One end is a 1/2" Male JIC on a 3/4-16 UNF thread, and the other end is a 3/4" Male BSPP on a G 3/4-14 thread. So if you're trying to tie a JIC line into a BSPP port without adding extra adapters in between, this one fitting handles that connection directly.

Answer by: Customer Support on Dec 4, 2025, 1:06 PM

Will this elbow work to connect a JIC line to a BSPP one?

Question by: Rex R on Feb 24, 2026, 10:06 AM

Yes, this 90-degree elbow is designed specifically for connecting a 1/2" Male JIC fitting to a 3/4" Male BSPP fitting.

Answer by: Customer Support on Feb 26, 2026, 6:03 AM

trying to hook a 1/2 jic hose up to a port thats 3/4 bspp. is this the right elbow for that?

Question by: Ricky J on Jul 11, 2025, 2:18 PM

For that mix of standards, it matches up as a 90 degree adjustable elbow with a 1/2 inch Male JIC end using 3/4 to 16 UNF threads, and a 3/4 inch Male BSPP end using G 3/4 to 14 threads. It is made to bridge JIC to BSPP in the same hydraulic circuit.

Answer by: Customer Support on Jul 13, 2025, 6:34 AM
