90*Mjic X Male Bspp Adj Elbow

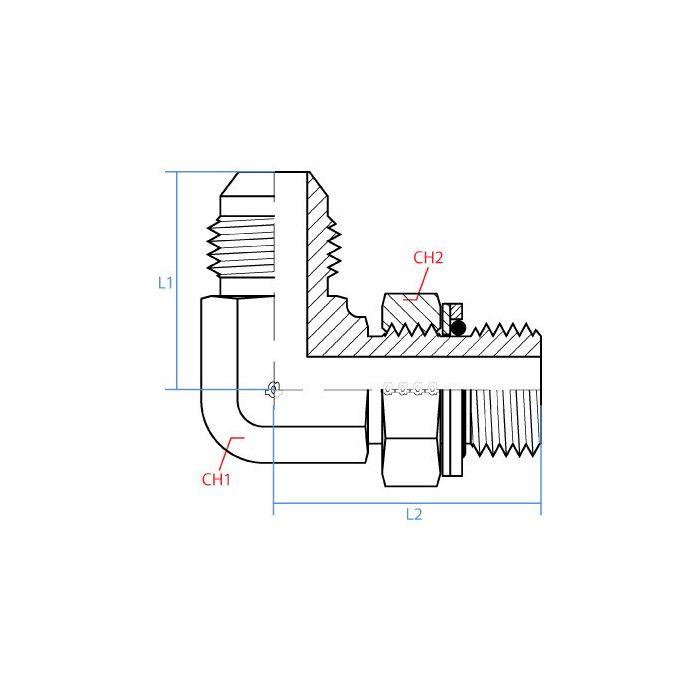

CH1 Width 22mm	CH2 Width 26mm	L1 Length 35mm	L2 Length 43mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-06908906, Alternate Part Number MINO-03671X03740	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-08-08	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up for hydraulic fluid, or is it more for air lines and stuff like that?

Question by: Judy H on Oct 16, 2025, 9:14 AM

It is designed for secure and efficient fluid transfer in demanding industrial environments. This elbow fitting is crucial for achieving leak-free connections in industrial fluid systems.

Answer by: Customer Support on Oct 18, 2025, 7:21 AM

Got a machine running G 1/2 BSPP ports and need to make a 90-degree turn into a JIC line, this fitting do that job?

Question by: Lynn C on Nov 28, 2025, 9:27 PM

That's what this one's built for. One end is Male JIC with 3/4-16 UNF threads, the other is Male BSPP at G 1/2-14, and the whole thing bends at 90 degrees. Both sides are 1/2 inch nominal size, so if your port and your JIC line match up to those specs, you're in good shape.

Answer by: Customer Support on Nov 30, 2025, 7:31 AM
