90*Mjic X Male Bspp Adj Elbow

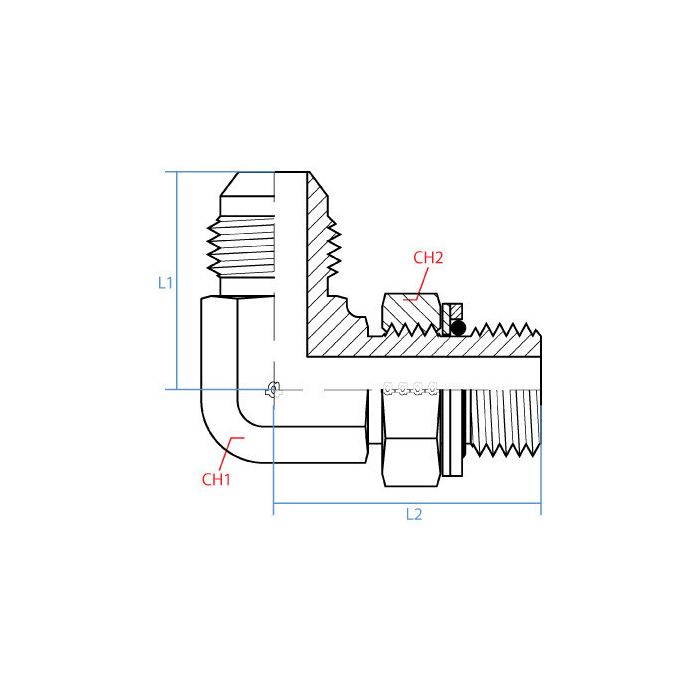

CH1 Width 19mm	CH2 Width 22mm	L1 Length 33mm	L2 Length 38mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-08-06	Product Weight 0.25 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap out an elbow on my hydraulic line, is this one the kind that goes from 3/4-16 UNF JIC male to G 3/8-19 BSPP male?

Question by: Brent C on Sep 18, 2025, 9:23 PM

Match-up wise, it is a 90 degree steel elbow with a 3/4 - 16 UNF male JIC on one end and a G 3/8 - 19 male BSPP on the other, so it fits that exact thread and gender combination.

Answer by: Customer Support on Sep 20, 2025, 6:49 AM
