90* Mjic X Mbspp Adj. Elbow 9059-08-04

Specifications

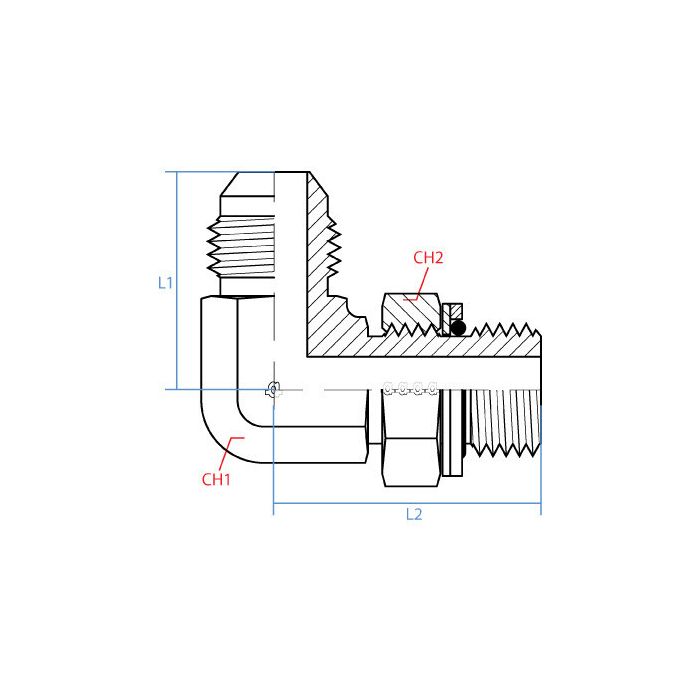

CH1 Width 19mm	CH2 Width 19mm	L1 Length 33mm	L2 Length 35mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-08-04	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the thread situation on both ends of this fitting? trying to match up a JIC line to a BSPP port and want to make sure I got the right sizes before I order

Question by: Sherry M on Feb 28, 2026, 5:47 PM

One end is a 1/2 inch Male JIC on a 3/4-16 UNF thread, and the other end is a 1/4 inch Male BSPP on a G 1/4-19 thread. So yeah, if you've got a JIC hydraulic line on one side and a BSPP port on the other, this elbow is built to bridge exactly that connection. Both ends are male, so make sure your mating ports are female on both sides before you pull the trigger.

Answer by: Customer Support on Mar 2, 2026, 11:41 AM

trying to swap an elbow out on a machine, is this the one that goes from 1/2" JIC to 1/4" BSPP?

Question by: Kirk F on Jul 3, 2025, 8:22 AM

The key details are the thread types and sizes: one side is a 1/2 inch male JIC with a 3/4-16 UNF thread, and the other side is a 1/4 inch male BSPP with a G 1/4-19 thread. It is a 90 degree elbow, steel, with 19 mm wrench flats on both ends.

Answer by: Customer Support on Jul 4, 2025, 8:17 PM

What kind of material is this elbow made from?

Question by: Rusty P on Mar 12, 2026, 1:36 PM

This elbow is constructed from steel, ensuring durability for industrial use.

Answer by: Customer Support on Mar 14, 2026, 8:45 AM
