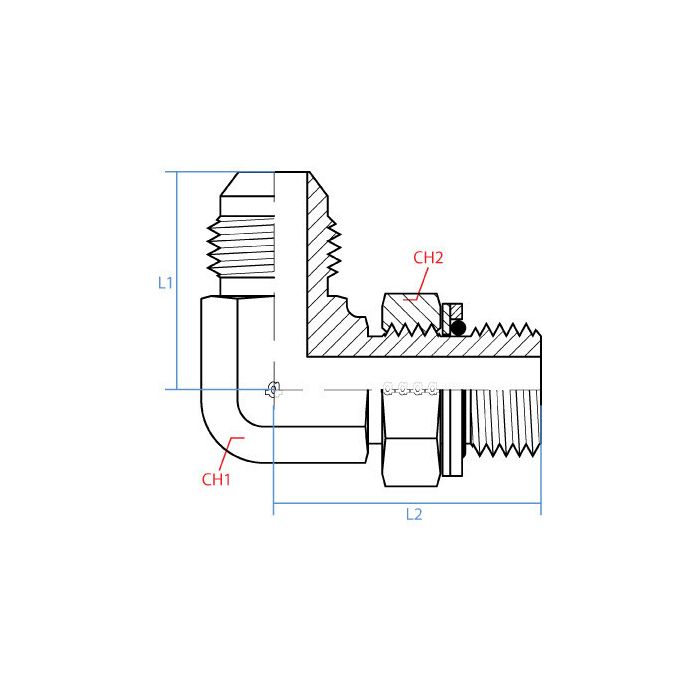

90*Mjic X Male Bspp Adj Elbow 9059-06-08

Specifications

CH1 Width 22mm	CH2 Width 26mm	L1 Length 37mm	L2 Length 44mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-02116278, Alternate Part Number MINO-03671J02619	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-06-08	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this elbow work with standard BSPP fittings, or is there something special about it?

Question by: Cheryl W on Oct 27, 2025, 7:41 AM

It's made to fit standard BSPP (British Standard Parallel Pipe) threads on one side, specifically G 1/2 - 14, so you shouldn't have any trouble connecting it to other fittings with the same standard. The other side uses a 9/16 - 18 UNF JIC connection.

Answer by: Customer Support on Oct 29, 2025, 6:27 AM

Got a line running JIC on one end and BSPP on the other, does this fitting actually handle both those thread types in one piece, or do I need an adapter in between?

Question by: Sherry S on Jul 5, 2025, 6:58 PM

Both standards are covered in a single fitting here. One end is JIC with a 9/16-18 UNF thread, sized for 3/8 inch line, and the other end is male BSPP with a G 1/2-14 thread for a 1/2 inch connection. No intermediate adapter needed. The 90 degree elbow body handles the thread transition and the directional change at the same time, which keeps the hydraulic connections cleaner and cuts down on potential leak points.

Answer by: Customer Support on Jul 7, 2025, 6:59 AM
