90*Mjic X Male Bspp Adj Elbow

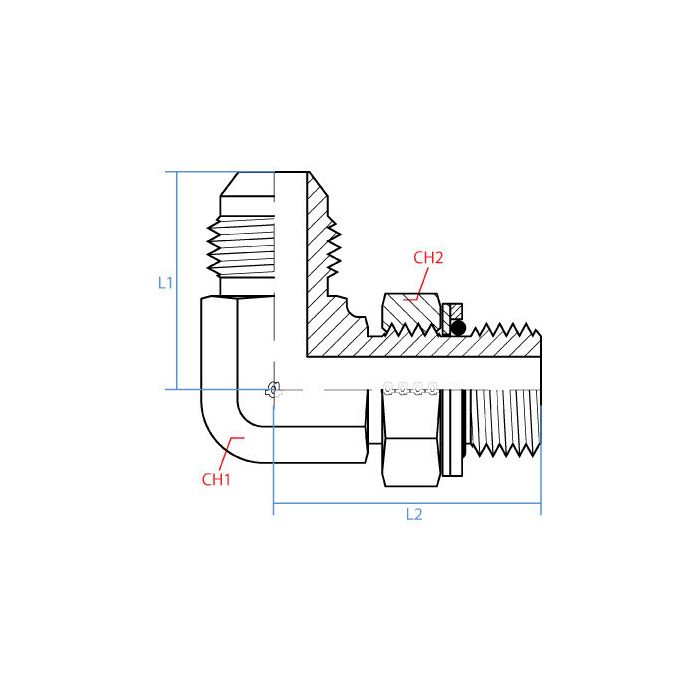

CH1 Width 19mm	CH2 Width 22mm	L1 Length 30mm	L2 Length 38mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-02118835, Alternate Part Number MINO-03671J07107	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-06-06	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay in an oily environment, say around a hydraulic pump?

Question by: Shane R on Aug 24, 2025, 5:05 PM

Built to stringent industry specifications, this steel elbow is designed for excellent durability, even in demanding environments.

Answer by: Customer Support on Aug 26, 2025, 6:23 AM

Got a machine running G 3/8 BSPP ports and need to make a 90-degree turn into a JIC line, this the right piece for that?

Question by: Carl M on Dec 4, 2025, 6:05 AM

That's what this fitting handles. One end is a male G 3/8-19 BSPP, and the other is a 9/16-18 UNF male JIC in 3/8" size. The 90-degree angle makes it practical when you're working in a tight spot and can't run a straight adapter. Both sides are 3/8", so the flow sizing stays consistent through the connection. Steel construction means it'll hold up in a working industrial environment without babying it.

Answer by: Customer Support on Dec 6, 2025, 6:02 AM
