90*Mjic X Male Bspp Adj Elbow

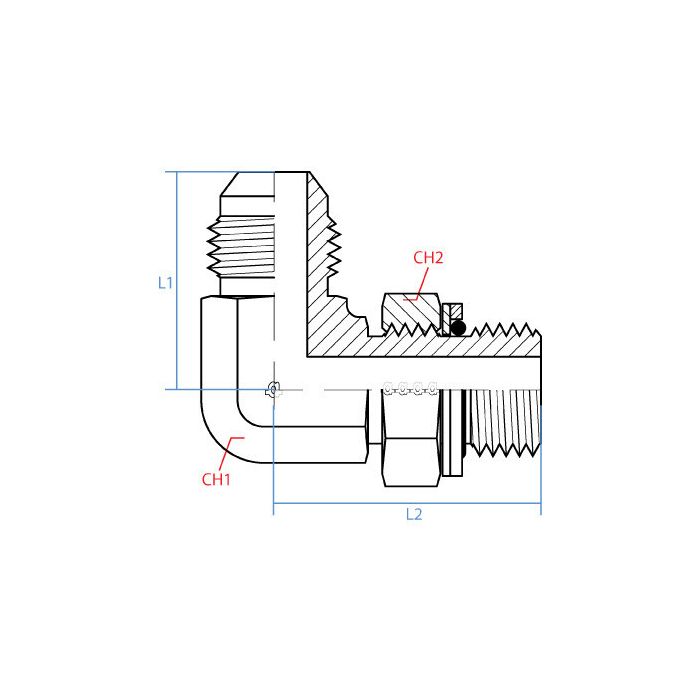

CH1 Width 14mm	CH2 Width 19mm	L1 Length 29.5mm	L2 Length 25.6mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number 9059-0604, Alternate Part Number MI-03031474, Alternate Part Number MINO-03671J03176	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-06-04	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

got a line running G 1/4 BSPP male on one end and JIC 3/8 on the other, and I need a 90 degree turn in there. this the right piece for that?

Question by: Wayne K on Jun 3, 2025, 9:36 AM

That setup matches exactly what this fitting handles. Side 1 is a 9/16-18 UNF JIC male at 3/8 inch, and Side 2 is a G 1/4-19 BSPP male at 1/4 inch, with a 90 degree elbow between them. Both ends are male, so make sure your mating ports are female on both sides before ordering.

Answer by: Customer Support on Jun 5, 2025, 7:28 AM

trying to swap an elbow out, are the ends on this one 9/16-18 JIC male on one side and G 1/4-19 BSPP male on the other?

Question by: Carl C on Feb 6, 2026, 8:55 AM

It’s a 90 degree adjustable elbow with a 9/16 - 18 UNF JIC male on Side 1 and a G 1/4 - 19 BSPP male on Side 2.

Answer by: Customer Support on Feb 7, 2026, 5:49 PM
