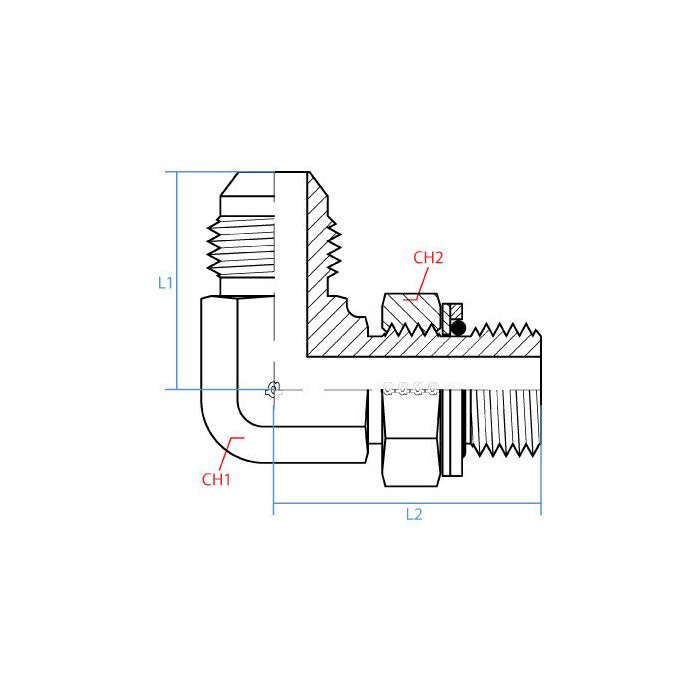

90* Mjic X Mbspp Adj. Elbow

CH1 Width 14mm	CH2 Width 19mm	L1 Length 29mm	L2 Length 25mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-05-04	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Hey, will this elbow fitting work with my hydraulic setup if I got a 5/16" JIC on one side and a 1/4" BSPP on the other? Just wanna make sure it's gonna fit right.

Question by: Ronnie H on May 31, 2025, 10:46 AM

Yes, this 90-degree elbow is specifically designed with a 5/16" M JIC connection on one side and a 1/4" M BSPP connection on the other to ensure compatibility in such setups.

Answer by: Customer Support on Jun 1, 2025, 12:45 PM

trying to swap an elbow on a hose, what threads are on each end of this adjustable 90

Question by: Curt O on Feb 3, 2026, 12:38 PM

On the JIC side you get a 5/16 inch male with 1/2 - 20 UNF threads, and the other end is a 1/4 inch male BSPP with G 1/4 - 19 threads. It is a 90 degree adjustable elbow, so it’s meant to help you clock the fitting where you need it.

Answer by: Customer Support on Feb 5, 2026, 6:42 AM
