90*Mjic X Male Bspp Adj Elbow 9059-04-06

Specifications

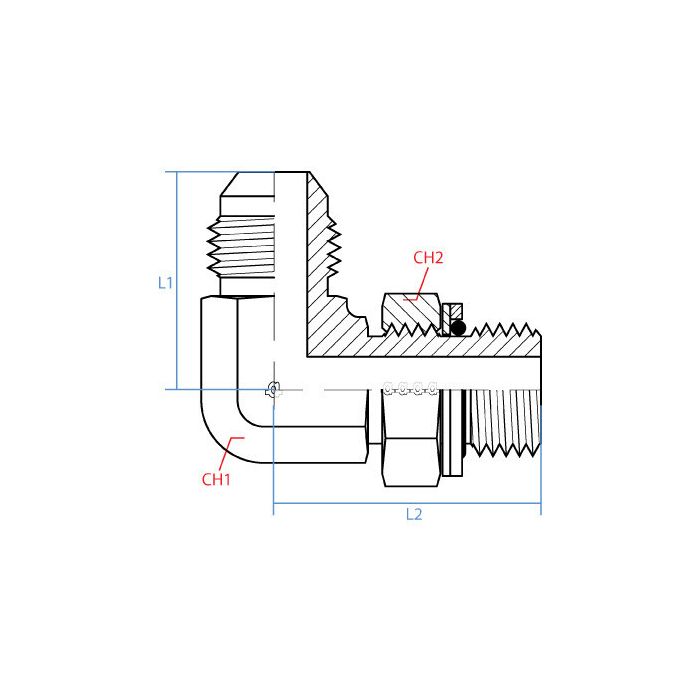

CH1 Width 19mm	CH2 Width 22mm	L1 Length 28mm	L2 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-04-06	Product Weight 0.21 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a fitting out, are the ends on this elbow 1/4 JIC male and 3/8 BSPP male?

Question by: Lyle H on Jan 5, 2026, 6:45 PM

On the JIC side it is a 7/16-20 UNF male (1/4 inch JIC), and on the other side it is a G 3/8-19 male BSPP (3/8 inch BSPP).

Answer by: Customer Support on Jan 7, 2026, 10:18 AM

got a machine running JIC on one end and BSPP on the other, does this fitting actually handle both thread types in one piece?

Question by: Rex M on Oct 12, 2025, 11:42 AM

That's what it's built for. One side is 7/16-20 UNF male JIC, which is your 1/4" JIC connection, and the other side is G 3/8-19 male BSPP. Both threads are on the same elbow, so you're not stacking adapters to bridge those two standards. Steel construction keeps it solid in working conditions where a softer material would give you trouble over time.

Answer by: Customer Support on Oct 13, 2025, 8:37 PM

Will this elbow handle hydraulic fluid without issues?

Question by: Bobby M on Apr 23, 2025, 5:50 PM

Constructed from steel, this elbow is designed for the demands of industrial hydraulic applications.

Answer by: Customer Support on Apr 25, 2025, 6:43 AM
