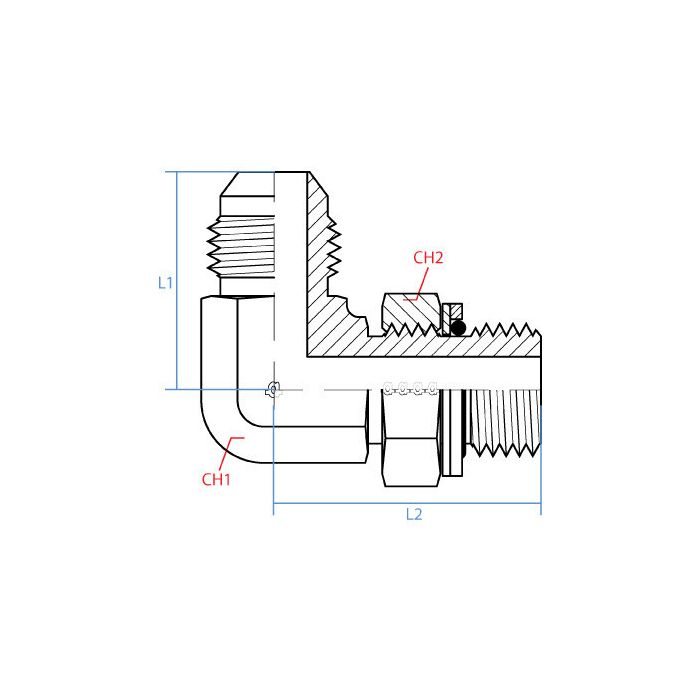

90*Mjic X Male Bspp Adj Elbow

CH1 Width 14mm	CH2 Width 19mm	L1 Length 28mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-06908909, Alternate Part Number MINO-03671X02202	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-04-04	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line running BSPP on one end and JIC on the other, does this fitting make that connection at a 90 degree turn?

Question by: Dale G on Jun 4, 2025, 9:09 AM

That's what it's built for. One side is a male JIC 7/16-20 UNF and the other is a male BSPP G 1/4-19, so it bridges those two thread standards while changing direction 90 degrees. Both sides are 1/4 inch nominal size, so flow path sizing stays consistent across the connection.

Answer by: Customer Support on Jun 6, 2025, 6:26 AM
