90*Mjic X Male Bspp Adj Elbow

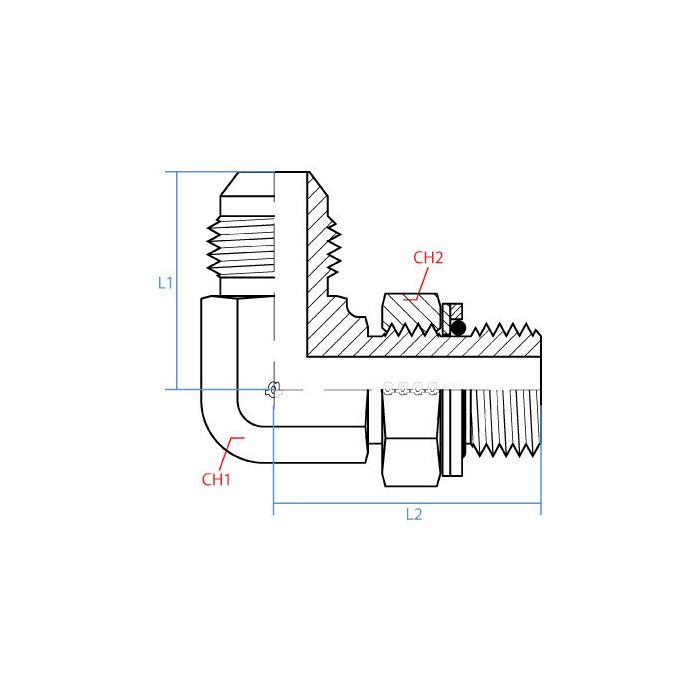

CH1 Width 12mm	CH2 Width 14mm	L1 Length 24mm	L2 Length 28mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9059-04-02	Product Weight 0.05 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this fitting hold up if I'm constantly running hydraulic fluid through it all day long?

Question by: Bobby C on Apr 11, 2025, 9:46 PM

This Adaptall elbow is crafted from high-quality steel, so it should provide a reliable, leak-free connection even under demanding, high-pressure conditions.

Answer by: Customer Support on Apr 13, 2025, 6:22 AM
