45* Mjic X Mbspp Adj. Elbow 9058-16-16

Specifications

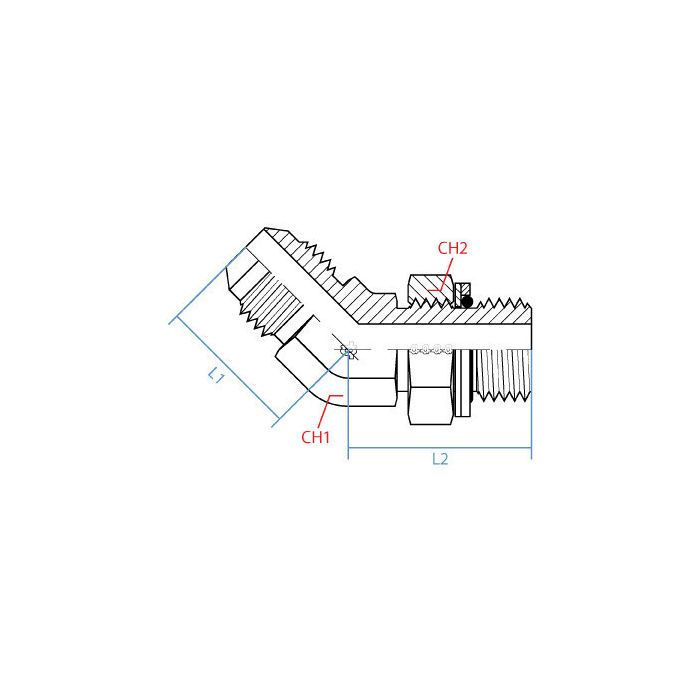

CH1 Width 33mm	CH2 Width 41mm	L1 Length 35mm	L2 Length 47mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9058-16-16	Product Weight 0.85 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line coming off a British-made power unit with a BSPP port and I need to tie into a JIC system on the other end, this elbow gonna work for that?

Question by: Brent A on Sep 19, 2025, 9:51 AM

That's the situation this fitting handles. One end is a 1-inch Male JIC with a 1-5/16–12 UN thread, and the other is a 1-inch Male BSPP running a G 1–11 thread. The 45-degree angle helps when you're working in a tight spot and can't run a straight adapter. Being adjustable, you can clock the elbow to whatever position works best before you torque it down, so routing the line isn't a fight.

Answer by: Customer Support on Sep 21, 2025, 6:47 AM

What size wrenches do I need to tighten this elbow down?

Question by: Tony E on Jul 31, 2025, 8:11 AM

You'll need a 33mm wrench for the Ch1 side and a 41mm wrench for the Ch2 side.

Answer by: Customer Support on Aug 1, 2025, 9:21 PM

trying to tie a 1 inch JIC hose end into a 1 inch BSPP port, is this the elbow that bridges those two

Question by: Shane A on Jul 11, 2025, 9:36 PM

For that kind of cross-over, it matches a 1 inch Male JIC on one side with 1-5/16 - 12 UN threads, and a 1 inch Male BSPP on the other side with G 1 - 11 threads. It is built to join JIC and BSPP connections at a 45 degree angle.

Answer by: Customer Support on Jul 13, 2025, 6:36 AM
