45* Mjic X Mbspp Adj. Elbow

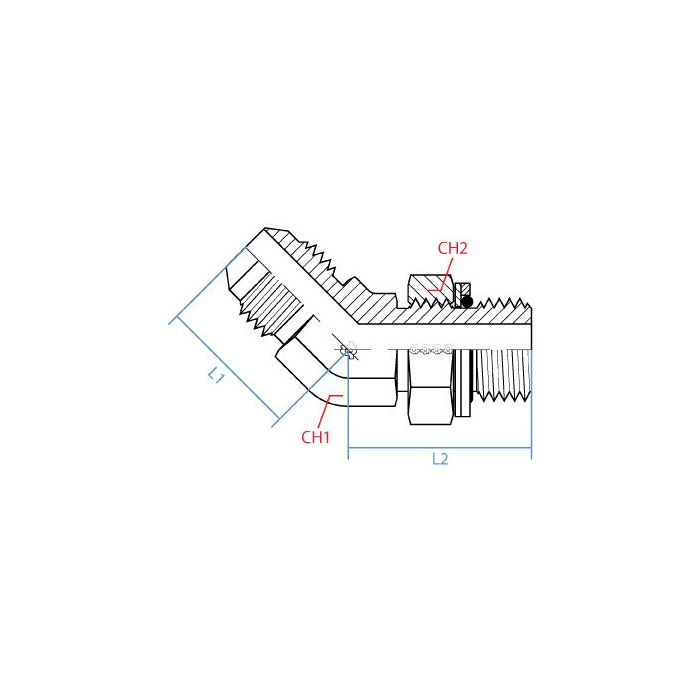

CH1 Width 27mm	CH2 Width 36mm	L1 Length 31mm	L2 Length 43mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9058-12-12	Product Weight 0.58 lbs

Product Questions & Answers 2

Product Questions & Answers

Is this elbow fitting steel all the way through? Just want to make sure it can handle the pressures in my hydraulic system.

Question by: Tony C on Apr 15, 2025, 3:55 PM

The 45° adjustable elbow is manufactured by Adaptall in steel, which should provide reliable performance in demanding hydraulic environments.

Answer by: Customer Support on Apr 16, 2025, 6:26 PM

Got a line coming off a British-made valve block with G 3/4-14 ports, and I need to swing it 45 degrees to clear a frame rail before connecting to JIC fittings on the rest of the system. This fitting do that job?

Question by: Rick K on Apr 11, 2025, 6:45 AM

That's the kind of situation this fitting handles. One end is a 3/4" male BSPP with G 3/4-14 thread, and the other is a 3/4" male JIC running 1-1/16-12 UN thread. The 45-degree angle is built in, and because it's adjustable, you can clock the outlet to whatever position clears your frame rail before you lock it down. Steel construction, so it'll hold up in a working hydraulic environment without any fuss.

Answer by: Customer Support on Apr 12, 2025, 3:40 PM
