45* Mjic X Mbspp Adj. Elbow 9058-12-08

Specifications

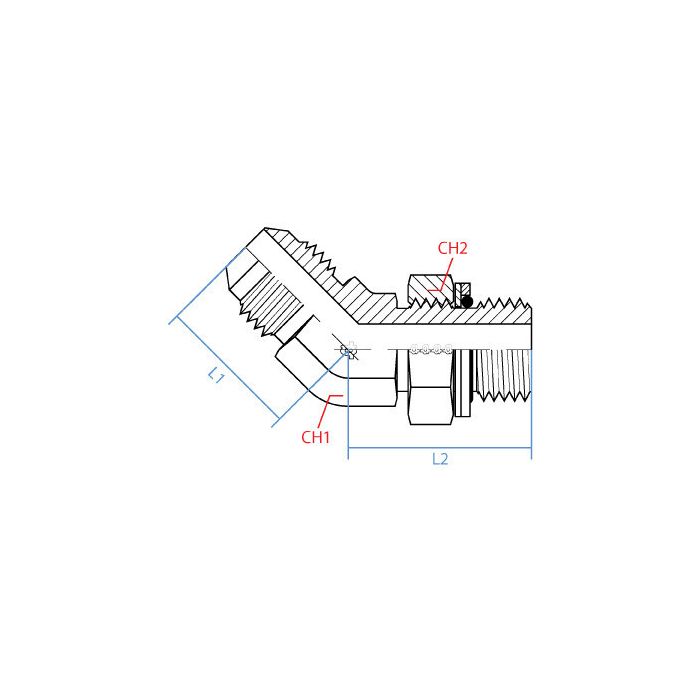

CH1 Width 27mm	CH2 Width 27mm	L1 Length 31mm	L2 Length 40mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9058-12-08	Product Weight 0.45 lbs

Product Questions & Answers 3

Product Questions & Answers

What size are the connections on this elbow?

Question by: Shawn G on Sep 11, 2025, 12:39 PM

One side features a 3/4" male JIC connection (1-1/16 - 12 UN), while the other has a 1/2" male BSPP connection (G 1/2 - 14).

Answer by: Customer Support on Sep 13, 2025, 8:17 AM

Got a machine running BSPP ports and my hydraulic lines are JIC fittings, will this elbow let me tie them together at an angle without needing some kind of adapter stack?

Question by: Ray H on Sep 21, 2025, 7:54 AM

That's what this fitting is built for. One end is a 3/4" male JIC (1-1/16 - 12 UN thread) and the other is a 1/2" male BSPP (G 1/2 - 14 thread), so it bridges those two thread standards in a single piece. The 45-degree angle helps when you need to redirect a line without forcing a sharp bend or fighting tight clearances around other components. Both channel widths measure 27mm, and the overall lengths are 31mm on one side and 40mm on the other, so you can plan your spacing before install.

Answer by: Customer Support on Sep 22, 2025, 8:08 PM

got a hose with a 3/4 male JIC end and the port i’m going into is G 1/2 BSPP. is this the right elbow to marry those up

Question by: Wayne E on Sep 10, 2025, 7:24 PM

For that mix of thread types, it matches what you described. One side is a 3/4 inch male JIC with 1-1/16 - 12 UN threads, and the other side is a 1/2 inch male BSPP with G 1/2 - 14 threads, built as a 45 degree elbow.

Answer by: Customer Support on Sep 12, 2025, 6:23 AM
