45* Mjic X Mbspp Adj. Elbow 9058-10-08

Specifications

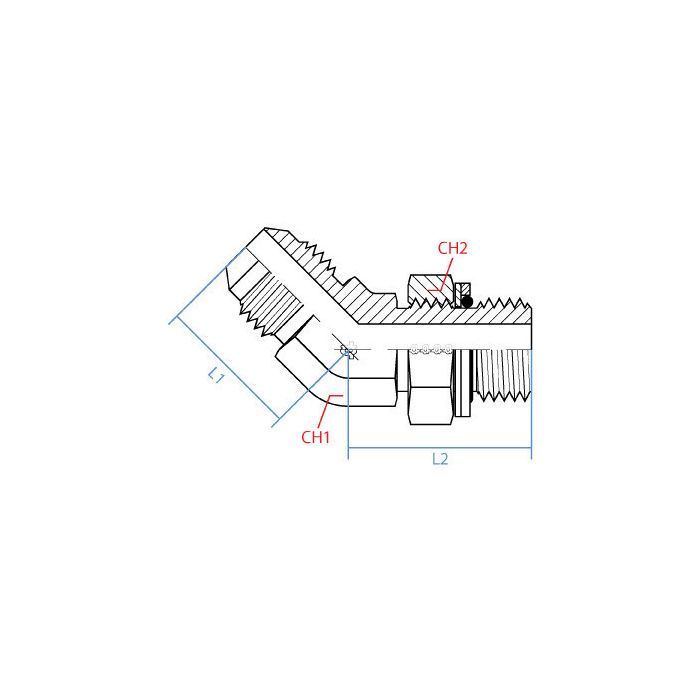

CH1 Width 21mm	CH2 Width 27mm	L1 Length 31mm	L2 Length 38mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9058-10-08	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this elbow fitting would hold up okay in a hydraulic system running outdoors?

Question by: Tony D on Jan 24, 2026, 6:54 AM

Crafted from robust steel, this 45° adjustable elbow fitting is made to offer long-lasting performance even in demanding environments.

Answer by: Customer Support on Jan 25, 2026, 8:31 AM

got a hose end that’s 7/8-14 JIC male and the port on the other side is G 1/2-14 BSPP male, is that what this elbow is?

Question by: Lee J on Jul 2, 2025, 4:30 PM

For matching threads, it’s a 45 degree adjustable elbow with a 7/8-14 UNF male JIC on one end and a G 1/2-14 male BSPP on the other.

Answer by: Customer Support on Jul 4, 2025, 8:58 AM

Got a machine running 7/8-14 JIC on one end and need to tie into a G 1/2-14 BSPP port, will this fitting bridge that gap without needing an adapter in between?

Question by: Connie B on Dec 12, 2025, 7:16 AM

That's what this fitting handles. One side is a 7/8-14 UNF male JIC connection and the other is a G 1/2-14 male BSPP, so you're connecting those two thread standards directly with a single piece. No stacking adapters, no extra fittings in the line. It's steel construction and comes from Adaptall, so it holds up well in working hydraulic setups.

Answer by: Customer Support on Dec 14, 2025, 6:10 AM
