45* Mjic X Mbspp Adj. Elbow

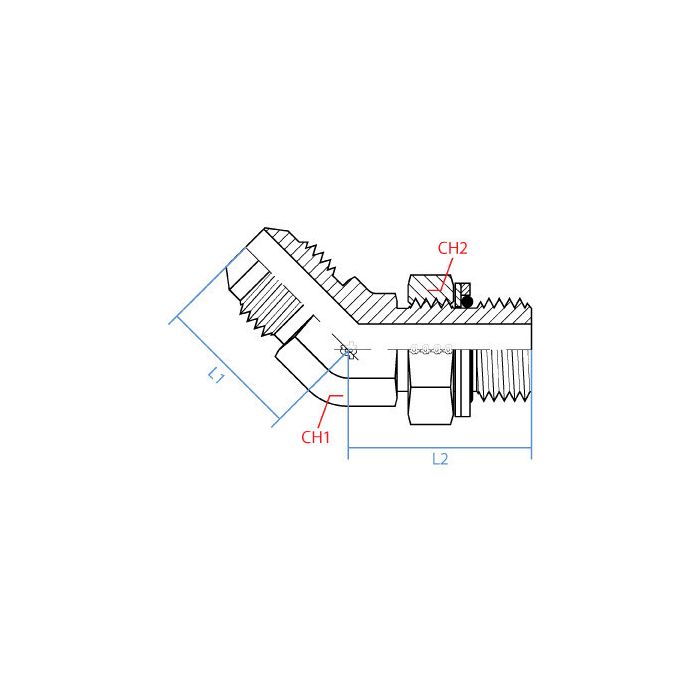

CH1 Width 22mm	CH2 Width 27mm	L1 Length 25mm	L2 Length 38.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9058-08-08	Product Weight 0.30 lbs

Product Questions & Answers

trying to swap a straight fitting out, what threads are on each end of this 45 elbow?

Question by: Lyle C on Jul 7, 2025, 12:23 PM

On the JIC side you get a 1/2 inch male JIC with a 3/4-16 UNF thread. The other end is a 1/2 inch male BSPP port thread, called out as G 1/2-14.

Answer by: Customer Support on Jul 9, 2025, 6:39 AM
