45* Mjic X Mbspp Adj. Elbow

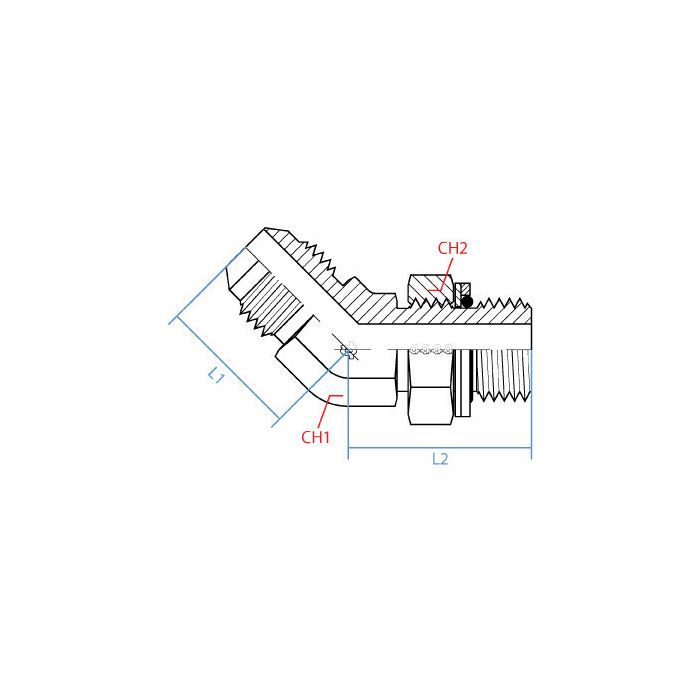

CH1 Width 19mm	CH2 Width 22mm	L1 Length 25mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9058-08-06	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

got a line running JIC on one end and BSPP on the other, does this fitting bridge those two thread types at a 45 degree angle?

Question by: Darryl P on Jan 21, 2026, 9:03 AM

That's what it does. One side is a 3/4-16 UNF male JIC (1/2" size) and the other is a G 3/8-19 male BSPP (3/8" size), and the whole thing sits at a 45 degree bend. So if you're routing a line between a JIC port and a BSPP port and need to change direction a bit, this handles both the thread conversion and the angle in one piece.

Answer by: Customer Support on Jan 23, 2026, 6:16 AM
