45* Mjic X Mbspp Adj. Elbow

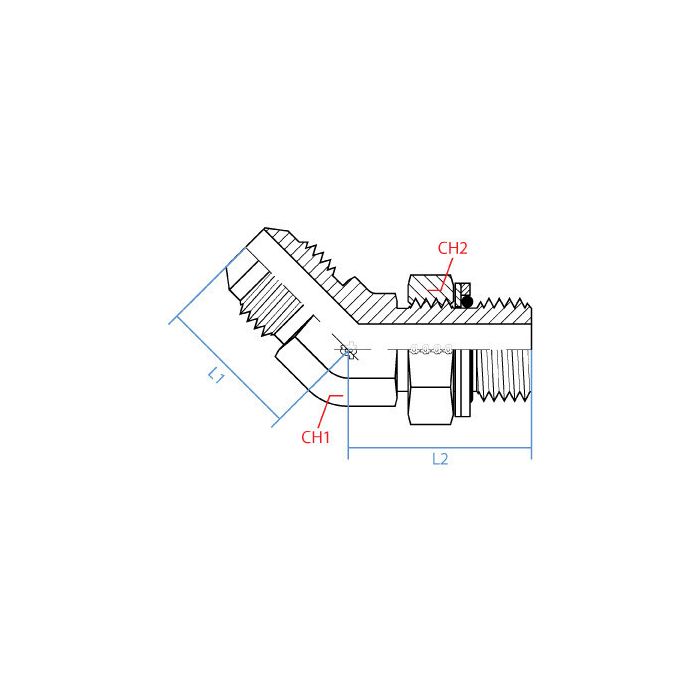

CH1 Width 19mm	CH2 Width 22mm	L1 Length 21mm	L2 Length 32mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9058-06-06	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a machine running JIC fittings on one end and BSPP on the other, does this elbow actually connect both thread types or do I still need an adapter in between?

Question by: Stan W on Nov 23, 2025, 5:59 PM

Both thread types are built right into this single fitting. One end is a 9/16-18 UNF JIC male, and the other is a G 3/8-19 BSPP male, so it bridges those two standards without any additional adapter. Both sides are sized at 3/8", and the 45-degree angle lets you redirect the line without fighting a straight fitting into a tight spot.

Answer by: Customer Support on Nov 25, 2025, 2:51 PM
