45* Mjic X Mbspp Adj. Elbow

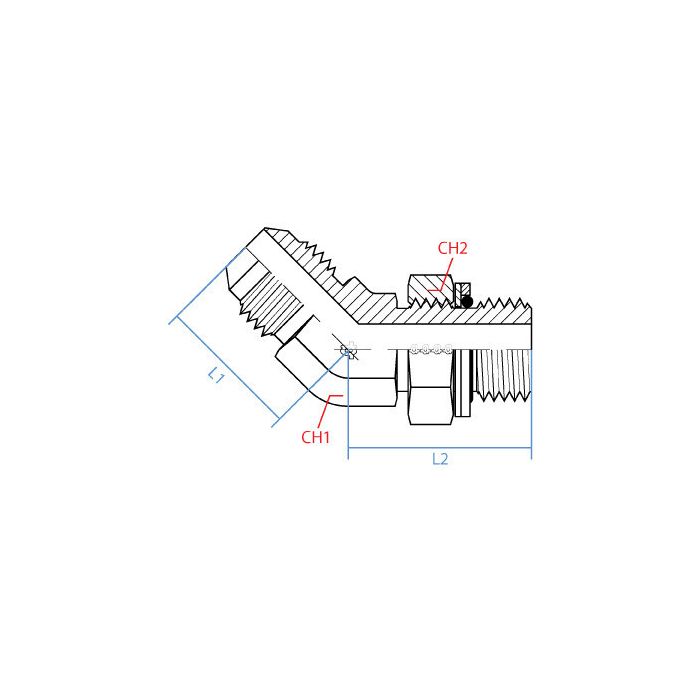

CH1 Width 14mm	CH2 Width 19mm	L1 Length 20.5mm	L2 Length 28.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9058-06-04	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a machine that runs JIC on one end and BSPP on the other, will this elbow tie those two together?

Question by: Lynn E on Mar 1, 2026, 3:57 PM

That's what it's built for. One end is a 3/8" male JIC with a 9/16-18 UNF thread, and the other is a 1/4" male BSPP running G 1/4-19. If your assembly is mixing those two thread standards, this fitting bridges them at a 45-degree angle without any adapters in between.

Answer by: Customer Support on Mar 3, 2026, 12:50 PM

trying to hook a 3/8 jic hose end to a port that’s g 1/4, is this the right elbow for that?

Question by: Gene T on Jan 26, 2026, 9:07 AM

For that kind of mix-and-match, it’s a 45 degree adjustable steel elbow with a 3/8 inch male JIC end (9/16-18 UNF) on one side and a 1/4 inch male BSPP end (G 1/4-19) on the other, so it’s meant to bridge those two thread standards.

Answer by: Customer Support on Jan 28, 2026, 8:33 AM
