45* Mjic X Mbspp Adj. Elbow 9058-04-02

Specifications

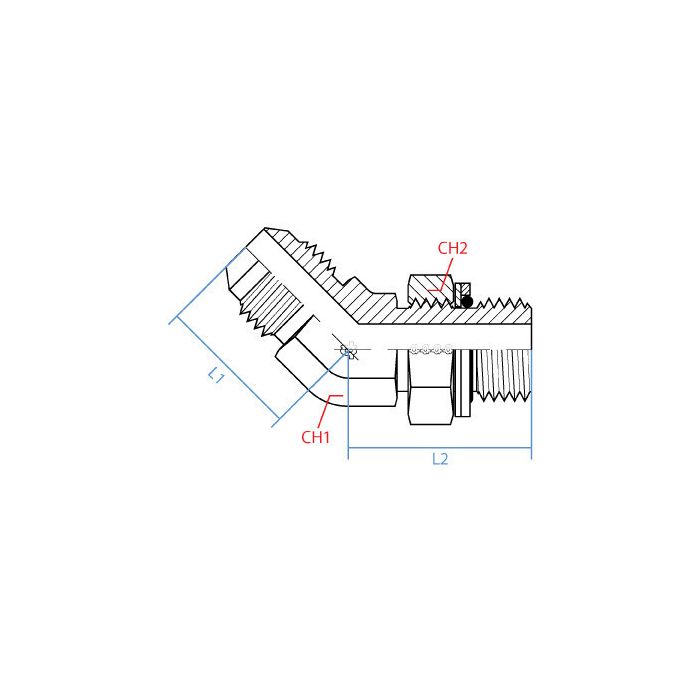

CH1 Width 12mm	CH2 Width 14mm	L1 Length 20mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9058-04-02	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

So, will this elbow fitting work with both JIC and BSPP thread types? Just want to make sure before I order.

Question by: Troy B on Feb 24, 2026, 4:40 PM

Yes, it's designed to connect male JIC and BSPP threads. Side one features 7/16 - 20 UNF male JIC, and side two has G 1/8 - 28 male BSPP.

Answer by: Customer Support on Feb 26, 2026, 2:38 PM

trying to hook a 1/4 jic hose to a 1/8 bspp port, is this the right elbow for that?

Question by: Ronnie S on May 29, 2025, 1:38 PM

For that combo, it matches up: side one is a 7/16-20 UNF male JIC (1/4 inch) and side two is a G 1/8-28 male BSPP (1/8 inch). It is a 45 degree elbow, so it helps when you need to turn the line instead of coming straight out.

Answer by: Customer Support on May 30, 2025, 2:13 PM

fitting's got a 45 degree angle on it, but can you adjust which direction it points once it's threaded in, or is it fixed once you tighten it down?

Question by: Keith G on Jul 19, 2025, 4:09 PM

Because it's an adjustable elbow, you can orient the angled end in whatever direction works best for your routing before you lock it down. That's the whole advantage of the adj. style over a fixed elbow. Get it pointed where you need it, then tighten to hold position.

Answer by: Customer Support on Jul 20, 2025, 9:12 PM
