90* Male Bspp X Male Bspt 9057-16-16

Specifications

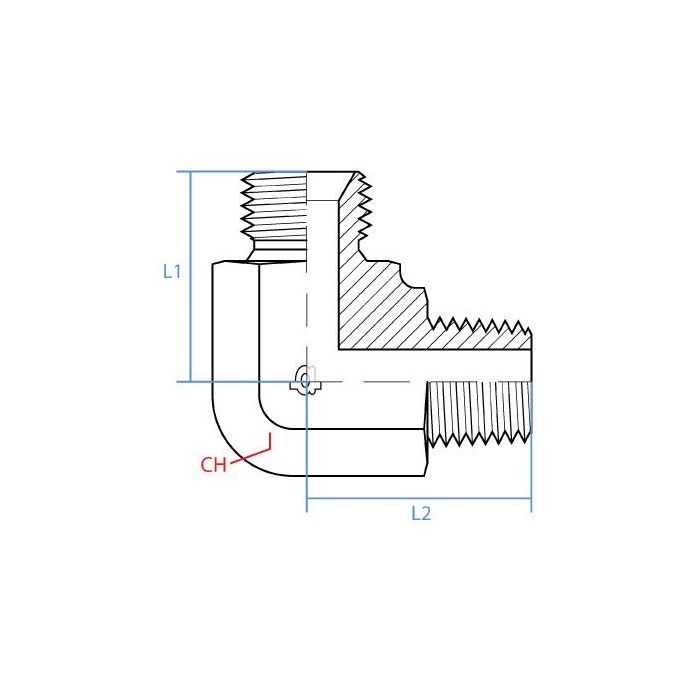

CH Width 33mm	L1 Length 48mm	L2 Length 45mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout R 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9057-16-16	Product Weight 0.80 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a 1" BSPP male port on my hydraulic block and need to turn the line 90 degrees into a BSPT male fitting, this the right piece for that?

Question by: Rhonda K on Jul 15, 2025, 7:14 PM

That's what this fitting handles. One end is a 1" male BSPP with a G 1-11 thread, and the other end is a 1" male BSPT with an R 1-11 thread. The 90 degree elbow shape lets you make that turn right at the connection point, so it fits your situation well.

Answer by: Customer Support on Jul 16, 2025, 8:54 PM

got a line that’s got a female G 1 and i need to turn the corner and go into an R 1 taper. is this the right elbow for that?

Question by: Curt H on Oct 6, 2025, 1:55 PM

For that kind of hookup, it matches what you described: one end is male BSPP with a G 1 - 11 callout and the other end is male BSPT with an R 1 - 11 callout, and it’s a 90 degree elbow so it handles the turn.

Answer by: Customer Support on Oct 8, 2025, 7:52 AM

Will this fitting hold up okay in a hydraulic system that sees some pretty high pressures?

Question by: Steve T on Jul 1, 2025, 1:58 PM

Constructed from durable steel, this fitting should offer reliable performance even in demanding hydraulic applications.

Answer by: Customer Support on Jul 3, 2025, 1:21 PM
