90* Male Bspp X Male Bspt

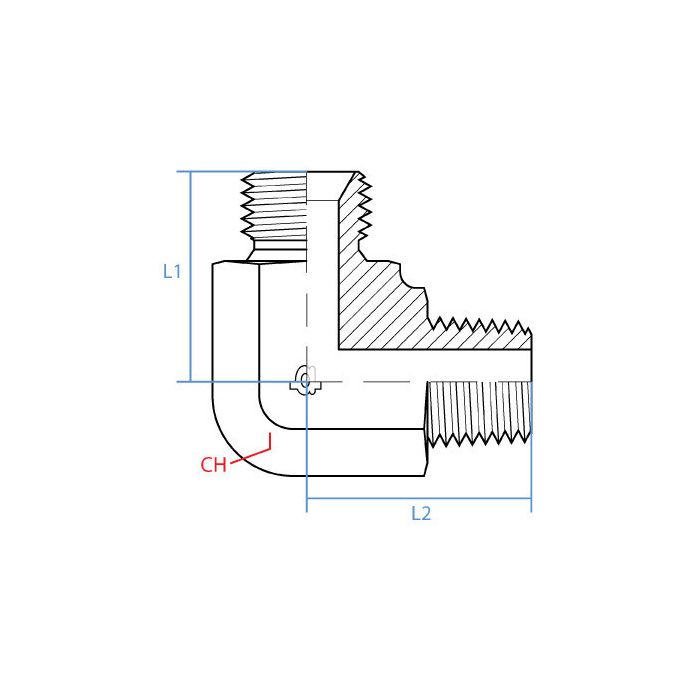

CH Width 14mm	L1 Length 25.5mm	L2 Length 26.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9057-04-02	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a gauge port on a manifold that's G 1/4 BSPP and I need to run a line off it with an R 1/8 BSPT male fitting, will this elbow handle both of those in one shot?

Question by: Neil R on Feb 25, 2026, 7:34 PM

That's what this fitting does. One side is G 1/4 BSPP male (19 thread pitch) and the other is R 1/8 BSPT male (28 thread pitch), so you're converting between those two British thread standards while also changing direction 90 degrees. Steel construction, made by Adaptall, part number 9057-04-02. One fitting handles the thread swap and the turn both.

Answer by: Customer Support on Feb 27, 2026, 6:53 AM

trying to hook a G 1/4 port up to an R 1/8 line and i need it to turn 90 degrees, is this the right fitting?

Question by: Glen R on Feb 16, 2026, 11:26 AM

For that kind of thread mix, it’s a match. One end is a G 1/4 BSPP male (G 1/4 - 19) and the other end is an R 1/8 BSPT male (R 1/8 - 28), built as a 90° elbow so you get the direction change and the BSPP to BSPT conversion in one piece.

Answer by: Customer Support on Feb 18, 2026, 6:58 AM
