90* Male Bspp X Male Bspt

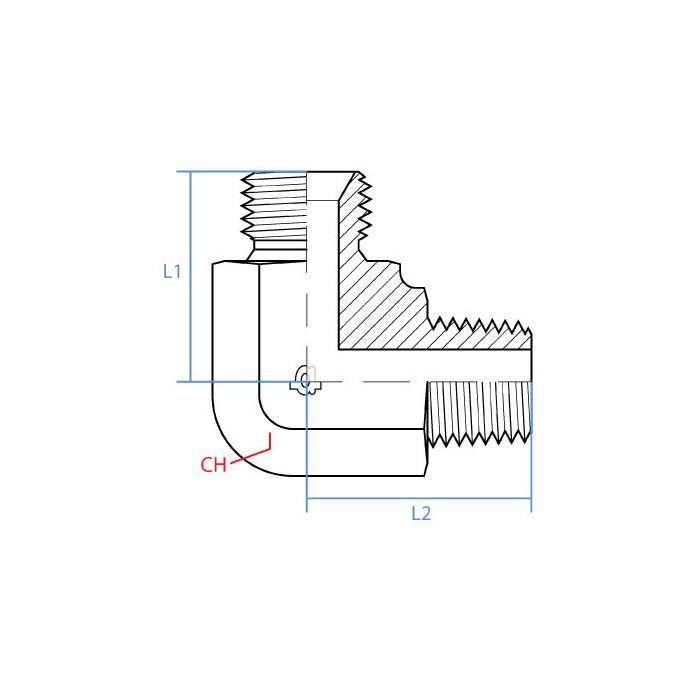

CH Width 12mm	L1 Length 18mm	L2 Length 20mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9057-02-02	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the thread size on both ends of this fitting, and are they the same type or different?

Question by: Terry W on Oct 26, 2025, 9:50 PM

Both ends are 1/8" in size, but they're not the same thread type. One end is BSPP, which is a parallel thread with a G 1/8 - 28 callout, and the other is BSPT, a tapered thread with an R 1/8 - 28 callout. That combination is exactly what makes this fitting useful when you're connecting between systems or components that use those two different British Standard thread types.

Answer by: Customer Support on Oct 28, 2025, 6:08 AM

What's the wrench size needed for tightening this elbow?

Question by: Freddie A on Dec 7, 2025, 11:55 AM

This fitting has a 12mm wrench flat, so that's the size you'll need.

Answer by: Customer Support on Dec 9, 2025, 6:36 AM
