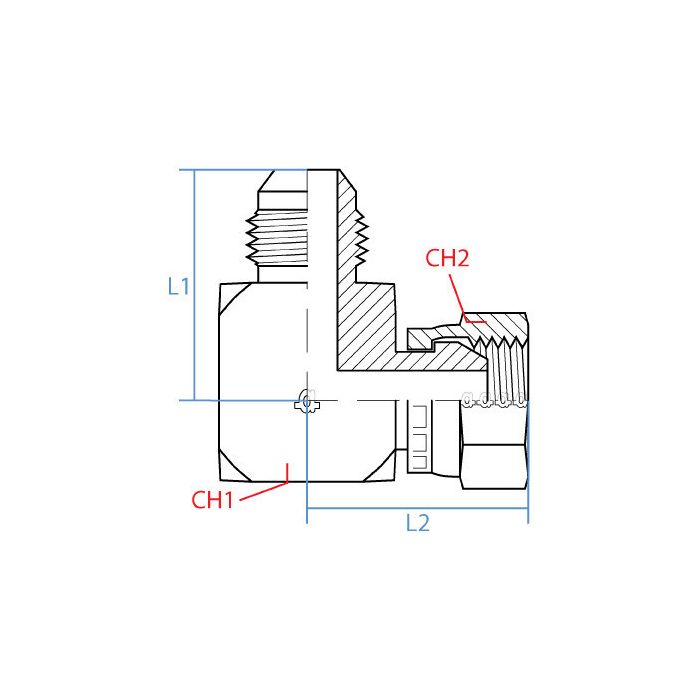

90* Male Jic X Female Bspp 9056-16-16

Specifications

Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout G 1 - 11	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9056-16-16	Product Weight 0.61 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a line running metric fittings on one end and JIC on the other, will this adapter bridge that gap without needing anything extra in between?

Question by: Jerry R on Dec 31, 2025, 6:06 PM

For the specific thread sizes listed here, yes it bridges exactly that gap. One side is a 1-5/16-12 UN male JIC thread, and the other is a G 1-11 female BSPP. Both are 1-inch nominal size, so if your existing fittings match those callouts, this is a single-piece solution with no additional adapters needed in the middle.

Answer by: Customer Support on Jan 2, 2026, 10:33 AM

got a hose end that’s 1-5/16 - 12 UN JIC male, will this elbow screw onto it and turn it over to BSPP?

Question by: Howard M on Jul 31, 2025, 4:32 PM

With this adapter, the JIC side is male at 1-5/16 - 12 UN and the BSPP side is female at G 1 - 11. So it is meant to mate to a female JIC port on one end, and accept a male BSPP fitting on the other, while giving you a 90 degree turn.

Answer by: Customer Support on Aug 1, 2025, 4:54 PM

Is this elbow fitting made of steel all the way through?

Question by: Jean B on Sep 14, 2025, 10:49 AM

Yes, this 90-degree elbow hydraulic adapter is constructed from durable steel to ensure reliable performance.

Answer by: Customer Support on Sep 16, 2025, 6:47 AM
