90* Male Jic X Female Bspp

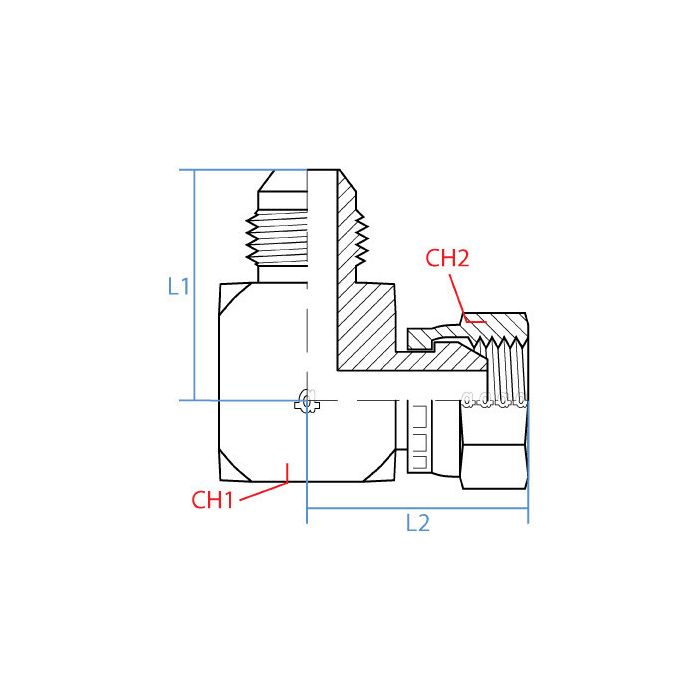

CH1 Width 27mm	CH2 Width 32mm	L1 Length 42mm	L2 Length 47mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9056-12-12	Product Weight 0.59 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up if I'm usin' it for somethin' with pretty high pressure?

Question by: Ralph S on Nov 2, 2025, 9:20 AM

Engineered for high-pressure environments, this connector is well-suited for demanding hydraulic applications, providing secure and leak-free connections.

Answer by: Customer Support on Nov 3, 2025, 10:39 AM

got a hose with a 1-1/16 - 12 UN JIC male on it. is this the elbow that’ll turn it 90 and adapt over to a G 3/4 - 14 BSPP female?

Question by: Ricky P on May 28, 2025, 2:13 PM

For a right-angle changeover between those two thread types, that’s exactly what this fitting is: a 90° steel elbow with a 1-1/16 - 12 UN Male JIC on one end and a G 3/4 - 14 Female BSPP on the other, both in 3/4 inch size.

Answer by: Customer Support on May 30, 2025, 6:18 AM
