90* Male Jic X Female Bspp

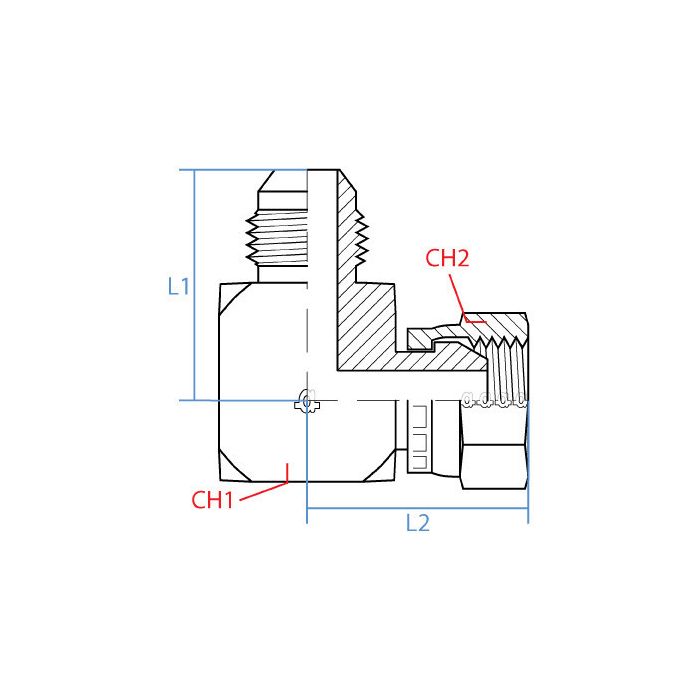

CH1 Width 22mm	CH2 Width 27mm	L1 Length 35mm	L2 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9056-08-08	Product Weight 0.28 lbs

Product Questions & Answers 2

Product Questions & Answers

Trying to tie together a JIC line and a BSPP port on a piece of equipment and don't have a lot of room to work with. This fitting do the job in a tight spot?

Question by: Sheila A on Apr 9, 2025, 11:20 AM

Right-angle fittings like this one are exactly what you reach for when a straight adapter just won't clear surrounding components. The 90-degree elbow puts the 1/2" Male JIC side at 3/4-16 UNF and the 1/2" Female BSPP side at G 1/2-14, so it bridges those two thread standards in one piece. Overall length runs 35mm one direction and 37mm the other, so the footprint stays pretty compact. If you've got the clearance for those dimensions, it should tuck in without much fuss.

Answer by: Customer Support on Apr 11, 2025, 7:11 AM

Just want to make sure, this will connect a JIC to a BSPP, right?

Question by: Ralph M on Jul 31, 2025, 8:02 AM

Yes, this 90-degree elbow adapter is specifically designed to connect a 1/2" Male JIC thread to a 1/2" Female BSPP thread.

Answer by: Customer Support on Aug 1, 2025, 8:22 AM
